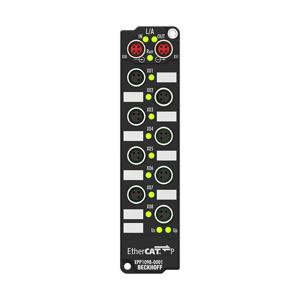

EPP1098-0001 - Beckhoff Industrial Housing
Technical Specifications of Beckhoff Industrial Housing EPP1098-0001:
| Brand | Beckhoff |
| Product Type | Industrial Housing |
| Product | EPP1098-0001 |
EPP1098-0001 Beckhoff Industrial Housing Technical Specifications
| Specification | Value |
|---|
| Specification | ground switching |
| Nominal input voltage | 24 V DC (-15%/+20%) |
| Input filter | 10 µs |
| "0" signal voltage | 11â¦30 V |
| "1" signal voltage | 0â¦7 V |
| Input current | typ. 3 mA |
| Sensor supply | from control voltage, max. 0.5 A, short-circuit proof in total |
| Operating temperature | -25...+60°C |
| Housing - Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Housing - Material | PA6 (polyamide) |
| Housing - Installation | 2 fixing holes 3.5 mm diameter for M3 |
