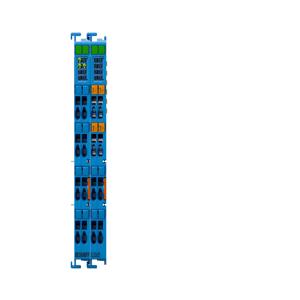

ELX3632 - Beckhoff EtherCAT Terminal Analog Input
Technical Specifications of Beckhoff EtherCAT Terminal Analog Input ELX3632:
| Brand | Beckhoff |
| Product Type | EtherCAT Terminal Analog Input |
| Product | ELX3632 |
ELX3632 Beckhoff EtherCAT Terminal Analog Input Technical Specifications
| Specification | Value |
|---|
| Number of inputs | 2 |
| Wiring | 2-wire |
| Ground reference (input) | differential |
| Measurement error/uncertainty 2 | < ±0.3% (relative to full scale value) |
| Housing - Design form | compact terminal housing with signal LEDs |
| Housing - Material | polycarbonate, blue |
| Housing - Dimensions (W x H x D) | 24Â mm x 100Â mm x 68 mm |
| Housing - Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Housing - Side by side mounting by means of | double slot and key connection |
| Housing - Marking | labeling of the BZxxxx series |
| Housing - Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Housing - Connection cross-section | s*: 0.08....2.5mm²,st*: 0.08...2.5mm²,f*: 0.14....1.5 mm² |
| Housing - Connection cross-section AWG | s*: AWG28...14,st*: AWG28...14,f*: AWG26...16 |
| Housing - Stripping length | 8…9 mm |
| Distributed clocks | yes |
| Current consumption E-bus | typ. 50 mA |
| Special features | automatic anti-aliasing function, wire breakage detection |
| Weight | approx. 100 g |
| Operating temperature | -25....+60°C |
| Storage temperature | -40....+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/see documentation |
| Approvals/markings | CE, UL, Ex, IECEx (in preparation) |
| Current consumption power contacts | typ. 20 mA |
