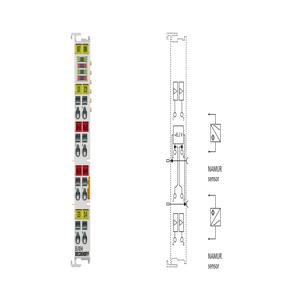

| Connection technology | 2-wire |
| Specification | NAMUR DC switching amplifier (IEC 60947-5-6) |
| Number of inputs | 4 |
| Current consumption E-bus | typ. 50 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Special features | integrated reverse polarity protection |
| Weight | approx. 60 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, cFMus |
| Ex marking | ATEX:II 3 G Ex ec IIC T4 GcIECEx:Ex ec IIC T4 GccFMus:Class I, Division 2, Groups A, B, C, DClass I, Zone 2, AEx ec IIC T4 Gc |
| Housing - Design form | compact terminal housing with signal LEDs |
| Housing - Material | polycarbonate |
| Housing - Dimensions (W x H x D) | 12Â mm x 100Â mm x 68 mm |
| Housing - Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Housing - Side by side mounting by means of | double slot and key connection |
| Housing - Marking | labeling of the BZxxxx series |
| Housing - Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Housing - Connection cross-section | s*: 0.08â¦2.5 mm²,st*: 0.08â¦2.5 mm²,f*: 0.14â¦1.5 mm² |
| Housing - Connection cross-section AWG | s*: AWG28...14,st*: AWG28...14,f*: AWG26...16 |
| Housing - Stripping length | 8…9 mm |
| Housing - Current load power contacts | Imax: 10 A |
| Technology | NAMUR |
| Signal type | binary, current input for NAMUR sensors |
| Open circuit voltage | typ. 8.2 V DC |
| Switching hysteresis | typ. 350 µA |
| Short-circuit current | typ. 7.8 mA |
| Fault detection | I ⤠200 µA (cable break), I ⥠7.0 mA (short circuit) |
| Max. switching frequency | 5 kHz (duty factor 50 %) |
| Internal resistance | according to I/V curve IEC 60947-5-6 |
| Supply voltage electronics | 24 V DC (via power contacts) |
