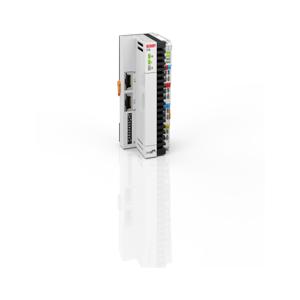

EK1400 - Beckhoff EtherCAT Coupler
EK1400 Beckhoff EtherCAT Coupler Technical Specifications
| Brand | Beckhoff |
| Product Type | EtherCAT Coupler |
| Product | EK1400 |
EK1400 Beckhoff EtherCAT Coupler Technical Specifications
| Specification | Value |
|---|
| Task within EtherCAT system | coupling of EtherCAT Terminals to EtherCAT G networks |
| Data transfer medium | Ethernet/EtherCAT cable (min. Cat.5), shielded |
| Distance between stations | max. 100 m (1000BASE-T) |
| Number of EtherCAT Terminals | up to 65,534 |
| Type/number of peripheral signals | max. 4.2 GB addressable I/O points |
| Protocol | EtherCAT |
| Delay | approx. 1 µs |
| Data transfer rates | 1 Gbit/s |
| Bus interface | 2 x RJ45 |
| Power supply | 24 V DC (-15%/+20%) |
| Power contacts | max. 24 V DC/max. 10 A |
| Electrical isolation | 500 V (power contact/supply voltage/Ethernet) |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE |
