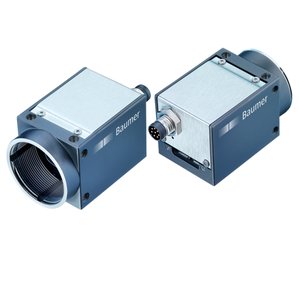

Home Brands Baumer Industrial Camera VCXU.2-32M Baumer VCXU.2-32M Industrial Camera The Baumer VCXU.2-32M Industrial Camera offers a 70.8 dB dynamic range, Global shutter , C-mount , and Sony IMX265 Gen2 connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
Brand Baumer Product Type Industrial Camera Model Number VCXU.2-32M
Baumer VCXU.2-32M Industrial Camera – Technical Specifications Specification Value Sensor Sony IMX265 Gen2 Mono/Color Mono Sensor type 1/1.8″ CMOS Shutter type Global shutter Resolution 2048 × 1536 px Pixel size 3.45 × 3.45 µm Exposure time 0.001 … 60000 ms Dark noise 2.05 e- Saturation capacity 9395 e- Dynamic range 70.8 dB Signal-to-noise ratio 39.7 dB Image formats, interface frame rate max. Full Frame, 2048 × 1536 px, max. 55 fps, Binning 2×2, 1024 × 768 px, max. 55 fps, Binning 2×1, 1024 × 1536 px, max. 55 fps, Binning 1×2, 2048 × 768 px, max. 55 fps Image formats, aquisition frame rate max. (Burst Mode) Full Frame, 2048 × 1536 px, max. 55 fps Pixel formats Mono8, Mono10, Mono12, Mono12 Packed Analog controls Gain (0 … 48 dB), Offset (0 … 255 LSB 12 Bit) Color models Mono Internal image buffer 432 MB, 48 images (Trigger Mode), 1 image (Free Running Mode) Process interface M8 / 8 pins (SACC-DSI-M8MS-8CON-M8-L180) Power supply via USB 3.0 interface Lens mount C-mount Width 29 mm Height 29 mm Depth 38 mm Weight ≤ 90 g Material zinc die casting, baked varnish Power consumption Approx. 2.5 W @ 55 fps Flash memory size 128 kB Operating temperature 0 … +65 ° @ T = measurement point Storage temperature -20 … +70 °C Humidity 10 … 90 % (non-condensing) Protection class IP 40 (with mounted lens and cable)
