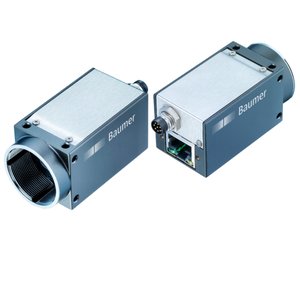

Home Brands Baumer Industrial Camera VCXG.2-51C Baumer VCXG.2-51C Industrial Camera The Baumer VCXG.2-51C Industrial Camera offers a 70.8 dB dynamic range, Global shutter , C-mount , and Sony IMX264 Gen2 connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
Brand Baumer Product Type Industrial Camera Model Number VCXG.2-51C
Baumer VCXG.2-51C Industrial Camera – Technical Specifications Specification Value Sensor Sony IMX264 Gen2 Mono/Color Color Sensor type 2/3″ CMOS Shutter type Global shutter Resolution 2448 × 2048 px Pixel size 3.45 × 3.45 µm Exposure time 0.001 … 60000 ms Dark noise 2.08 e- Saturation capacity 9522 e- Dynamic range 70.8 dB Signal-to-noise ratio 39.8 dB Image formats, interface frame rate max. Full Frame, 2448 × 2048 px, max. 24 fps, Binning 2×2, 1224 × 1024 px, max. 35 fps, Binning 2×1, 1224 × 2048 px, max. 35 fps, Binning 1×2, 2448 × 1024 px, max. 35 fps Image formats, aquisition frame rate max. (Burst Mode) Full Frame, 2448 × 2048 px, max. 35 fps Pixel formats BayerRG8, BayerRG10, BayerRG12, BayerRG12 Packed, Mono8, Mono10, Mono12, Mono12 Packed, RGB8, BGR8 Analog controls Gain (0 … 48 dB), Offset (0 … 255 LSB 12 Bit) Color models Mono, Raw Bayer, RGB Internal image buffer 115 MB, 8 images (Trigger Mode), 1 image (Free Running Mode) Process interface M8 / 8 pins (SACC-DSI-M8MS-8CON-M8-L180) Power supply via M8/8 pins or Power over Ethernet (PoE) Lens mount C-mount Width 29 mm Height 29 mm Depth 49 mm Weight ≤ 120 g Material zinc die casting, baked varnish Voltage supply range +Vs 12 … 24 V DC (external power supply), 36 … 57 V DC (Power over Ethernet) Power consumption Approx. 2.8 W @ 12 VDC and 24 fps, Approx. 3.5 W @ 48 VDC (PoE) and 24 fps Flash memory size 128 kB Operating temperature 0 … +65 ° @ T = measurement point Storage temperature -20 … +70 °C Humidity 10 … 90 % (non-condensing) Protection class IP 40 (with mounted lens and cable)
