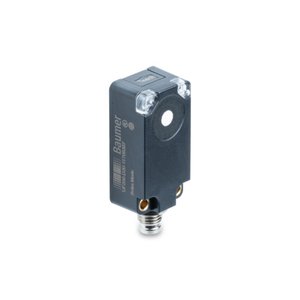

Baumer UF200.D25-IA1B.72N: Level Sensors
Technical Specifications of Baumer UF200.D25-IA1B.72N 11708366:
| Voltage supply range +Vs | 12 … 30 VDC |
| Output circuit | Current output |
Baumer Level Sensors UF200.D25-IA1B.72N Technical Specifications
| Specification | Value |
|---|---|
| Power on indication | LED green |
| Voltage supply range +Vs | 12 … 30 VDC |
| Output circuit | Current output |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes, Vs to GND |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Depth | 15 mm |
| Connection types | Connector M8 4 pin |
| Operating temperature | -25 … +65 °C |
| Storage temperature | -25 … +75 °C |
| Protection class | IP 67 |
| Scanning range Sd | 10 … 250 mm |
| Scanning range close limit Sdc | 10 … 250 mm |
| Scanning range far limit Sde | 10 … 250 mm |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Resolution | < 0.3 mm |
| Response time ton/toff standard | < 25 ms |
| Response time ton/toff min | < 10 ms |
| Temperature drift | < 2 % of distance to target Sde |
| Power-up drift | Compensated after 15 min. |
| Sonic frequency | 370 kHz |
| Adjustment | qTeach, line-Teach |
| Light indicator | LED yellow |
| Alignment measuring axis | < 2° |
| Current consumption typ. | 11 mA |
| Output signal | 4 ... 20 mA / 20 ... 4 mA |
| Residual ripple | < 10 % Vs |
| Width / diameter | 20.5 mm |
| Height / length | 41 mm |
| Load resistance | < (+Vs - 10V) / 0,02 A |
