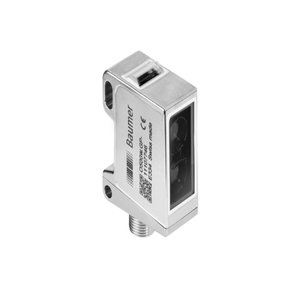

O500W.GP-GW1J.PVO: 11125092 - Baumer High-Precision Sensor For Object Detection
Technical Specifications of Baumer High-Precision Sensor For Object Detection O500W.GP-GW1J.PVO 11125092:
Spec | Value |
---|---|
Sensing distance Tw | 60 … 400 mm |
Sensing range Tb | 30 … 400 mm |
Output circuit | Push-pull |
Connection types | Connector M12 4 pin |
Baumer High-Precision Sensor For Object Detection O500W.GP-GW1J.PVO, 11125092 Technical Specifications:
Specification | Value |
---|---|
Type | Background suppression |
Sensing distance Tw | 60 … 400 mm |
Sensing range Tb | 30 … 400 mm |
Power on indication | LED green |
Sensing distance adjustment | Teach-in and IO-Link |
Suppression of reciprocal influence | Yes |
Alignment optical axis | < 1° |
Light source | Pulsed PinPoint LED |
Wave length | 630 nm |
Response time / release time | < 0.49 ms |
Voltage supply range +Vs | 10 … 30 VDC |
Current consumption max. (no load) | 40 mA |
Current consumption typ. | 30 mA |
Voltage drop Vd | <3 VDC |
Output function | Light / dark operate |
Output circuit | Push-pull |
Output current | 100 mA |
Short circuit protection | Yes |
Width / diameter | 20.2 mm |
Height / length | 47.2 mm |
Depth | 37.7 mm |
Design | Rectangular |
Housing material | Stainless steel 1.4404 (V4A) |
Front (optics) | PMMA |
Connection types | Connector M12 4 pin |
Protection class | IP 68/69K & proTect+ |
Operating temperature | -25 … +60 °C |
Light indicator | LED yellow |
Mail Us for your needs in Baumer High-Precision Sensor For Object Detection O500W.GP-GW1J.PVO part no: 11125092 with budget-friendly prices. The Main Technical Parameters of O500W.GP-GW1J.PVO, 11125092 inludce Background suppression Sensor, engineered for precise detection with a sensing distance (Tw) of 60 … 400 mm. The sensor features Teach-in and IO-Link adjustment for flexible setup and utilizes an Pulsed PinPoint LED light source with a wavelength of 630 nm. It boasts a fast response time of less than < 0.49 ms, and operates within a voltage supply range of 10 … 30 VDC, with a typical current consumption of 30 mA. The output function supports Light / dark operate with a Push-pull output circuit and can handle an output current of up to 100 mA. Measuring 20.2 mm in width, 47.2 mm in height, and 37.7 mm in depth, this compact Rectangular sensor is connected via a Connector M12 4 pin. Customize Your Experience with a Quote for your requirement of Baumer High-Precision Sensor For Object Detection. Experience the difference with our competitive pricing and superior support over other Suppliers.
