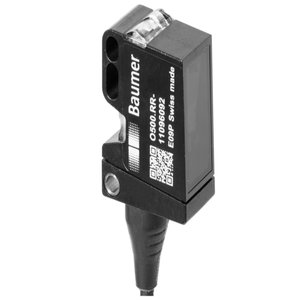

O500.GP-GW1J.72O: 11125079 - Baumer Sensor For High Sensing Distance Applications

Technical Specifications of Baumer Sensor For High Sensing Distance Applications O500.GP-GW1J.72O 11125079:

SpecValue
Sensing distance Tw60 … 400 mm
Sensing range Tb30 … 400 mm
Output circuitPush-pull
Connection typesConnector M12 4 pin

Baumer Sensor For High Sensing Distance Applications O500.GP-GW1J.72O, 11125079 Technical Specifications:

SpecificationValue
TypeBackground suppression
Sensing distance Tw60 … 400 mm
Sensing range Tb30 … 400 mm
Power on indicationLED green
Sensing distance adjustmentTeach-in and IO-Link
Suppression of reciprocal influenceYes
Alignment optical axis< 1°
Light sourcePulsed PinPoint LED
Wave length630 nm
Response time / release time< 0.49 ms
Voltage supply range +Vs10 … 30 VDC
Current consumption max. (no load)40 mA
Current consumption typ.30 mA
Voltage drop Vd<3 VDC
Output functionLight / dark operate
Output circuitPush-pull
Output current100 mA
Short circuit protectionYes
Width / diameter18 mm
Height / length45 mm
Depth32 mm
DesignRectangular
Housing materialPlastic (ASA, PMMA)
Front (optics)PMMA
Connection typesConnector M12 4 pin
Protection classIP 67
Operating temperature-25 … +60 °C
Light indicatorLED yellow
Call us for Baumer Sensor For High Sensing Distance Applications O500.GP-GW1J.72O part no: 11125079 at the best rates. Technical Attributes of O500.GP-GW1J.72O, 11125079 are Background suppression Sensor, engineered for precise detection with a sensing distance (Tw) of 60 … 400 mm. The sensor features Teach-in and IO-Link adjustment for flexible setup and utilizes an Pulsed PinPoint LED light source with a wavelength of 630 nm. It boasts a fast response time of less than < 0.49 ms, and operates within a voltage supply range of 10 … 30 VDC, with a typical current consumption of 30 mA. The output function supports Light / dark operate with a Push-pull output circuit and can handle an output current of up to 100 mA. Measuring 18 mm in width, 45 mm in height, and 32 mm in depth, this compact Rectangular sensor is connected via a Connector M12 4 pin. Unlock Exclusive Pricing with a Quote for your requirement of Baumer Sensor For High Sensing Distance Applications. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
