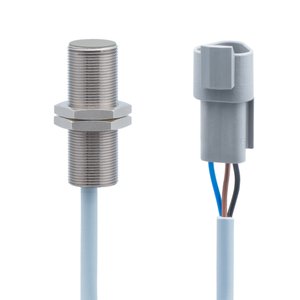

Baumer IR18V.D08L-F50.UA1Z.9BDU/0035_A002_E010 Proximity Sensor
The Baumer IR18V.D08L-F50.UA1Z.9BDU/0035_A002_E010 Proximity Sensor offers a Cylindrical threaded design, 0 … 8 mm sensing distance, Voltage output output, Flush mounting type, and Flylead connector DT04-3P 3 pin connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Model Number | IR18V.D08L-F50.UA1Z.9BDU/0035_A002_E010 |
Baumer IR18V.D08L-F50.UA1Z.9BDU/0035_A002_E010 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Measuring distance Sd | 0 … 8 mm |
| Resolution | < 0.008 mm (stat.), < 0.01 mm (dynam.) |
| Repeat accuracy | 0.016 mm |
| Linearity error | ± 120 µm |
| Temperature drift | ± 8 % (Full Scale) |
| Response time (factory characteristic) | < 1 ms |
| Voltage supply range +Vs | 4.75 … 5.25 VDC |
| Current consumption max. (no load) | 12 mA |
| Output circuit | Voltage output |
| Output signal | 0,5 ... 4,5 VDC |
| Load resistance | > 4500 Ohm |
| Short circuit protection | Yes |
| Reverse polarity protection | - |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 18 mm |
| Housing length | 50 mm |
| Connection types | Flylead connector DT04-3P 3 pin |
| Tightening torque max. | 40 Nm (A: 28 Nm, B: 28 Nm) |
| Operating temperature | -40 … +85 °C |
| Protection class | IP 68 (sensing face/sensor), IP 68 (1,5 m, 24 h), IP 69K (sensing face) |
IndMALL Automation Dealing offers Baumer Inductive Distance Sensor IR18V.D08L-F50.UA1Z.9BDU/0035_A002_E010 Article No: 11176397 at unbeatable prices. The Main Technical Parameters of IR18V.D08L-F50.UA1Z.9BDU/0035_A002_E010, 11176397 feature a Flush mounting type with a measuring distance of 0 … 8 mm. It delivers < 0.008 mm (stat.), < 0.01 mm (dynam.) resolution, ensuring repeat accuracy of 0.016 mm. The linearity error is ± 120 µm, with a temperature drift of ± 8 % (Full Scale). The factory-set response time is < 1 ms, making it ideal for high-speed applications. It operates within an 4.75 … 5.25 VDC voltage supply range, consuming only 12 mA. The Cylindrical threaded design includes a PBT sensing face and an Brass nickel plated housing for durability. The compact structure has an 18 mm dimension and an 50 mm housing length. It connects via a Flylead connector DT04-3P 3 pin and operates in temperatures between -40 … +85 °C with IP 68 (sensing face/sensor), IP 68 (1,5 m, 24 h), IP 69K (sensing face) protection. Take the First Step with a Quote for your requirement of Inductive Distance Sensor. Choose us for unparalleled pricing and support over other Dealers & Distributors.
