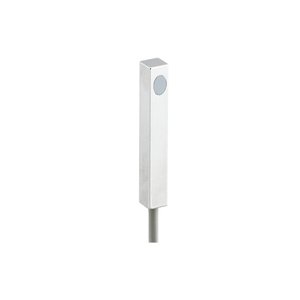

Baumer IFFM 06P15A1/O1L Proximity Sensor
The Baumer IFFM 06P15A1/O1L Proximity Sensor offers a Rectangular design, 1 mm sensing distance, PNP make function (NO) output, Flush mounting type, and Cable, L=2 m connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Mounting Type | Flush |
| Nominal sensing distance Sn | 1 mm |
| Output Circuit | PNP make function (NO) |
| Connection Types | Cable, L=2 m |
Baumer IFFM 06P15A1/O1L Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 1 mm |
| Hysteresis | 2 β¦ 20 % of Sr |
| Output indicator | LED red (backside) |
| Switching frequency | 5 kHz |
| Voltage supply range +Vs | 6 β¦ 30 VDC |
| Current consumption max. (no load) | 12 mA |
| Output circuit | PNP make function (NO) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Rectangular |
| Material (sensing face) | LCP |
| Housing material | Brass nickel plated |
| Dimension | 6 mm |
| Housing length | 30 mm |
| Connection types | Cable, L=2 m |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
Give Us a Call for Baumer PNP NO Miniature Sensors IFFM 06P15A1/O1L part no: 10146222 at the lowest pricing. In-depth Technical Analysis of IFFM 06P15A1/O1L, 10146222 feature Flush Mount Sensor, designed for precision applications with a 1 mm nominal sensing distance. The sensor features a LED red (backside) output indicator and operates at a fast switching frequency of 5 kHz ensuring rapid response times. The voltage supply range is from 6 β¦ 30 VDC and the output circuit uses an PNP make function (NO), capable of handling an output current of up to 200 mA. Its Rectangular design and durable Brass nickel plated (Polyamide) Housing material ensure reliability in industrial environments. The sensor has a compact housing length of 30 mm and overall dimensions of 6 mm. Equipped with an AB550 connection, it operates within a temperature range of -25 β¦ +75 Β°C. Elevate Your Project with a Quote for your requirement of Baumer PNP NO Miniature Sensors. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
