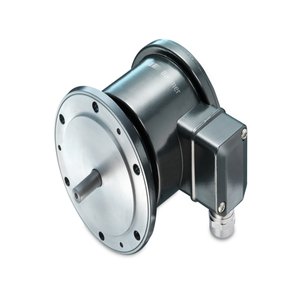

ES 90: Baumer Electronic Speed Switches
Technical Specifications of Baumer Electronic Speed Switches ES 90:
| Switching outputs | 1 output, speed control |
| Connection | Terminal box |
| Protection EN 60529 | IP 55 |
Baumer Electronic Speed Switches ES 90 Technical Specifications:
| Specification | Value |
|---|---|
| Switching accuracy | Β± 4 % (β€1500 rpm), Β± 2 % (>1500 rpm) |
| Switching outputs | 1 output, speed control |
| Output switching capacity | β€6 A / 250 VAC, β€1 A / 48 VDC, (EAC: <50 VAC / 75 VDC) |
| Switching delay time | β€40 ms |
| Protection EN 60529 | IP 55 |
| Range of switching speed (ns) | 650...6000 rpm |
| Operating temperature | -20...+85 Β°C |
| Connection | Terminal box |
| Material | Housing: aluminium die-cast, Shaft: stainless steel |
| Minimum switching current | 100 mA |
| Size (flange) | ΓΈ115 mm |
| Shaft type | ΓΈ11 mm solid shaft |
| Flange | EURO flange B10 |
| Speed (n) | β€6000 rpm |
| Operating torque | β€2 Ncm |
| Rotor moment of inertia | 0.125 kgcmΒ² |
| Admitted shaft load | β€150 N axial, β€250 N radial |
| Weight approx. | 1.3 kg |
Ask for the Pricing of Baumer Electronic Speed Switches ES 90 at unbeatable prices. Detailed Specifications of ES 90, feature voltage supply of and power consumption of . This sensor boasts high switching accuracy of Β± 4 % (β€1500 rpm), Β± 2 % (>1500 rpm) and features 1 output, speed control. The output switching capacity is β€6 A / 250 VAC, β€1 A / 48 VDC, (EAC: <50 VAC / 75 VDC). Rated for IP 55 protection under EN 60529 standards, it operates efficiently in temperatures ranging from -20...+85 Β°C. The sensor comes with a Terminal box for reliable connections, and the Housing: aluminium die-cast, Shaft: stainless steel, ensuring durability in harsh environments. Now's the Time to Secure a Quote for your requirement of Baumer Electronic Speed Switches. We're committed to offering more favorable pricing and more responsive support than other Traders.
