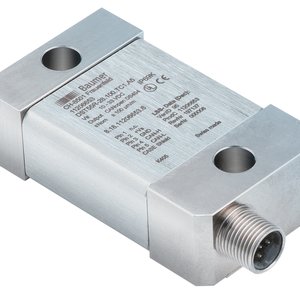

Baumer DST55R-28.202.TI1.A5 , 11707529: Miniaturized Strain Sensor
Technical Specifications of Baumer Miniaturized Strain Sensor DST55R-28.202.TI1.A5:
| Nominal Strain | 0 ... 2000 μm/m |
| Dimensions | 40 mm x 21 mm x 71 mm |
| Electrical Connection | M12, 5 pin, male |
| Supply Voltage | 18 ... 33 VDC |
Baumer Miniaturized Strain Sensor DST55R-28.202.TI1.A5 11707529 Technical Specifications
| Specification | Value |
|---|---|
| Nominal strain | 0 ... 2000 μm/m |
| Non-linearity | < 0.5 % |
| Repeatability | < 0.1 % |
| Mechanical mounting | 2 x M8 screws |
| Dimensions | 40 mm x 21 mm x 71 mm |
| Sensor stiffness | 400 N @ 2000 µm/m |
| Weight | 330 g |
| Material sensor body | 1.7225, chemically nickel plated |
| Material housing | Stainless steel, 1.4301 |
| Compensated for thermal expansion coefficient | 11.1 * 10-6 1/K |
| Electrical connection | M12, 5 pin, male |
| Operating temperature range | -40 ... 85 °C |
| Storage temperature range | -40 ... 85 °C |
| Protection class EN 60529, ISO20653 | IP 68, 168h @ 1m H2O, IP 69K, ProTect+ |
| Vibration IEC 60068-2-6 | 10 … 57 Hz: 1.5 mm p-p, 58 ... 2000 Hz: 10 g |
| Random IEC 60068-2-64 | 20 ... 1000 Hz: 0.1 g²/Hz |
| Shock IEC 60068-2-27 | 50 g / 11 ms, 100 g / 6 ms |
| Output signal | 4 ... 20 mA |
| Signal polarity positive | Tension |
| Bridge resistance | 350 Ω |
| Supply voltage | 18 ... 33 VDC |
| UL listed | E217824 |
| Overload | 150 % |
| Current consumption | < 60 mA |
| Cut-off frequency (3 db) | 1000 Hz |
| Material sealing | NBR |
| Corrosion protection IEC 60068-2-52 salt spray test | C5-M (ISO 12944-5: protective paint systems) |
| EMC | EN 61000-6-2, EN 61000-6-3, EN 61326-2-3 |
