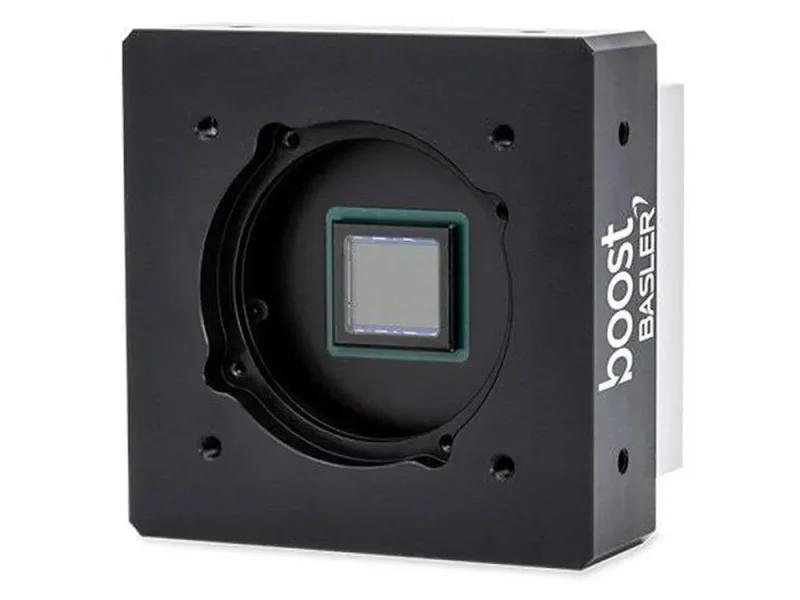

boA4504-100cm: 108378 - Basler High Bandwidths Vision System
Technical Specifications of Basler High Bandwidths Vision System boA4504-100cm 108378:
| Resolution | 20 MP |
| Pixel Size (H x V) | 2.74 μm × 2.74 μm |
| Frame rate | 100 fps |
Basler High Bandwidths Vision System boA4504-100cm, 108378 Technical Specifications:
| Specification | Value |
|---|---|
| Product Family | boost R |
| Camera Category | Area Scan Camera |
| Sensor Vendor | Sony |
| Sensor | IMX531 |
| Shutter | Global Shutter |
| Sensor Format | 1.2" |
| Sensor Type | CMOS |
| Sensor Size | 12.3 mm × 12.3 mm |
| Resolution (H x V) | 4504 px × 4504 px |
| Resolution | 20 MP |
| Pixel Size (H x V) | 2.74 μm × 2.74 μm |
| Frame rate | 100 fps |
| Mono/Color | Mono |
| Spectrum | Visible |
| Interface | CoaXPress (CXP-12) |
| Image Data Interface | CoaXPress (2.5–12.5 Gbps) |
| Digital Input | 1 |
| General Purpose I/O | 2 |
| Housing Size (L x W x H) | 45 mm x 80 mm x 80 mm |
| Weight | 525 g |
| Attribute Name | Attribute Value |
| Type | Lens Accessory |
| Cable Length | 5 m |
| LED Color | Red |
| Peak Wavelength (typical) | 625 nm |
| Protection Class | IP54 |
| Product Line | Standard |
| No. of Ports | 4 |
| Data Bandwidth (p.port; Total) | 12.5 Gbps; 50 Gbps |
| Power Requirements (typical) | 10.6 W |
| Housing Type | Box |
| Operating Temperature | max 50 °C |
| Mount | C-mount |
| Focal Length | 25 mm |
| Working Distance | 150 mm |
Obtain a Quote for Basler High Bandwidths Vision System boA4504-100cm part no: 108378 at economical prices. Specifications Overview for boA4504-100cm, 108378 reveals boost R Product Family 20 MP resolution with a pixel size of 2.74 μm × 2.74 μm. This camera supports a frame rate of 100 fps and utilizes the CoaXPress (CXP-12) interface for high-speed data transmission. Powered by it ensures reliable operation. The compact housing measures 45 mm x 80 mm x 80 mm making it suitable for various applications. It comes with a standard 5 m and Lens Accessory and operates at a peak wavelength of 625 nm. The product line includes 4 housed in a robust Box-type enclosure designed to withstand temperatures up to max 50 °C. Take the First Step with a Quote for your requirement of Basler High Bandwidths Vision System. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
