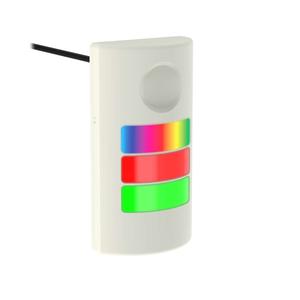

Bannerengineering TLF100P3 Tower Light
The Banner TLF100P3 Tower Light offers Flat - Tower housing style, 3 No. of Colors, No Thread Mounting Method, and Cable connection. Manufactured by Banner under the Banner Tower Lights category, this model belongs to the TL Series.
| Housing Style | Flat - Tower |
| Supply Voltage | 12-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
Banner TLF100P3 Tower Light β Technical Specifications
| Specification | Value |
|---|---|
| Type | TLF100 Pro Flush Mount Tower Light |
| Housing Style | Flat - Tower |
| IP Rating | IP65, IP69K |
| NEMA / UL Type Rating | UL 4X |
| Cable Length (m) | 2 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Cable |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 3 |
| Product Size (mm) | 100 |
| Color Technology | RGB Configurable |
| Color Option 1 | Green |
| Color Option 2 | Yellow |
| Color Option 3 | Red |
| Max Current Color (mA) | 150 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 12-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Max Input Response Time (ms) | 250 |
| Physical Dimensions (LxWxH or DxH mm) | 100.0 x 190.0 x 42.2 |
| Environmental Rating | IP65; IP69K |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Simultaneous Colors On |
| Max Current - Audible Alarm (mA) | 56 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50Β°C |
| Lumens Color 1 | 7.5 |
| Color 1 - Wavelength/Color Temp/Coordinates | 532 nm |
| Lumens Color 2 | 9.8 |
| Color 2 - Wavelength/Color Temp/Coordinates | 578 nm |
| Lumens Color 3 | 3.7 |
| Color 3 - Wavelength/Color Temp/Coordinates | 621 nm |
| Dimming Option | Programmable |
| Pro-Editor Compatible (Discrete) | Yes |
| Number of Tower Light Segments | 3 |
| PFM Input | Yes |
