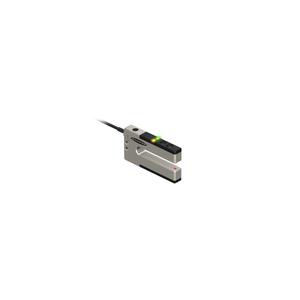

Procurement teams shortlist BANNERENGINEERING-SLM50B6QPMA with Banner Photoelectric Sensor, Banner Bannerengineering Slm10B6 and Banner Safety Light Curtain Type 4 S4B, aligning budget approvals, warranty terms, and multisite availability for smoother rollout across plants.
Bannerengineering SLM50B6QPMA SLM Series Rugged Metal Slot Sensor
Technical Specifications of Banner SLM Series Rugged Metal Slot Sensor SLM50B6QPMA:
| Quick Disconnect Type | M12 |
| Max Sensing Range (mm) | 50 |
| Power Supply/Supply Voltage | 10-30 V dc |
| NEMA / UL Type Rating | NEMA 4X |
Bannerengineering SLM Series Rugged Metal Slot Sensor SLM50B6QPMA Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | IP67 |
| Connection | Pigtail PUR QD |
| Quick Disconnect Type | M12 |
| Sensing Mode (Detailed) | Emitter/Receiver Pair |
| Primary Housing Material | Zinc Die-Cast with Nickel-Plating |
| NEMA / UL Type Rating | NEMA 4X |
| Adjustments | Potentiometer |
| Outputs | Bipolar (NPN & PNP) |
| Special Feature: Remote Teach | No |
| Max Sensing Range (mm) | 50 |
| Power Supply/Supply Voltage | 10-30 V dc |
| Number of Pins | 4 |
| Indicator | LEDs |
| Operation | Light/Dark Operate |
| Output response time (ms) | 0.5 |
| Repeatability (Β΅s) | 95 |
| Lens Material | Acrylic |
| Max Op. Temperature (Β°C) | 60 |
| Min Op. Temperature (Β°C) | -20 |
| Max Op. Relative Humidity (%) | 95% @ 55Β°C |
| Delay at Power-up (ms) | 100 |
| Feature: Quick Disconnect | Yes |
| Cable Length (m) | 0.2 |
| Housing Style | Slot |
| Slot Depth/Array Length (mm) | 60.8 |
| Slot Overall Depth (mm) | 80 |
| Minimum Object Detection [mm] | 0.6 |
| Minimum Object Detection (mm) | 0.6 |
