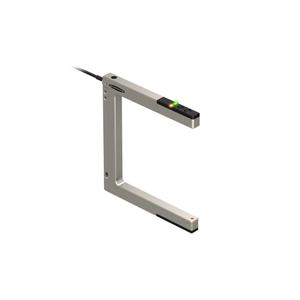

Bannerengineering SLM120B6QPMA SLM Series Rugged Metal Slot Sensor
Technical Specifications of Banner SLM Series Rugged Metal Slot Sensor SLM120B6QPMA:
| Quick Disconnect Type | M12 |
| Max Sensing Range (mm) | 120 |
| Power Supply/Supply Voltage | 10-30 V dc |
| NEMA / UL Type Rating | NEMA 4X |
Bannerengineering SLM Series Rugged Metal Slot Sensor SLM120B6QPMA Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | IP67 |
| Connection | Pigtail PUR QD |
| Quick Disconnect Type | M12 |
| Sensing Mode (Detailed) | Emitter/Receiver Pair |
| Primary Housing Material | Zinc Die-Cast with Nickel-Plating |
| NEMA / UL Type Rating | NEMA 4X |
| Adjustments | Potentiometer |
| Outputs | Bipolar (NPN & PNP) |
| Special Feature: Remote Teach | No |
| Max Sensing Range (mm) | 120 |
| Power Supply/Supply Voltage | 10-30 V dc |
| Number of Pins | 4 |
| Indicator | LEDs |
| Operation | Light/Dark Operate |
| Output response time (ms) | 0.5 |
| Repeatability (µs) | 95 |
| Lens Material | Acrylic |
| Max Op. Temperature (°C) | 60 |
| Min Op. Temperature (°C) | -20 |
| Max Op. Relative Humidity (%) | 95% @ 55°C |
| Delay at Power-up (ms) | 100 |
| Feature: Quick Disconnect | Yes |
| Cable Length (m) | 0.15 |
| Housing Style | Slot |
| Slot Depth/Array Length (mm) | 120.7 |
| Slot Overall Depth (mm) | 140 |
| Minimum Object Detection [mm] | 0.9 |
| Minimum Object Detection (mm) | 0.9 |
