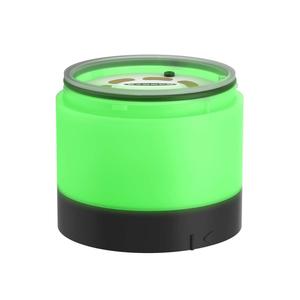

Bannerengineering SG-TL70B-G Tower Light
The Banner SG-TL70B-G Tower Light offers Segment - Light housing style, 1 No. of Colors, No Thread Mounting Method, and connection. Manufactured by Banner under the Banner Tower Lights category, this model belongs to the SG Series.
| Housing Style | Segment - Light |
Banner SG-TL70B-G Tower Light β Technical Specifications
| Specification | Value |
|---|---|
| Type | TL70 Basic Series 70mm Tower Lights |
| Housing Style | Segment - Light |
| IP Rating | IP65 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Feature: Audible | No |
| Indication | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 1 |
| Product Size (mm) | 70 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Dip-Switch Controlled |
| Max Current Color (mA) | 141 |
| Physical Dimensions (LxWxH or DxH mm) | 70.0 x 50.0 |
| Environmental Rating | IP65 |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Single Color On |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50Β°C |
| Storage Temp (Β°C) | -40 to 70 |
| Lumens Color 1 | 67 |
| Color 1 - Wavelength/Color Temp/Coordinates | 522 nm |
| Number of Tower Light Segments | 1 |
