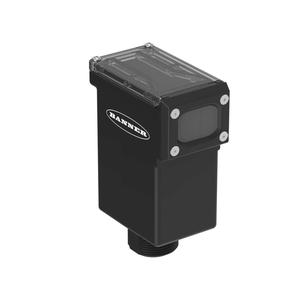

Banner QM42-DPS1-2Q Industrial Wireless
The Banner QM42-DPS1-2Q Industrial Wireless offers a DC power, 10-30 V dc power supply, and IP67 rating. Manufactured by Banner under the Banner Industrial Wireless category, this model belongs to the DX Series.
| Power Supply | 10-30 V dc |
| Power | DC |
| NEMA / UL Type Rating | NEMA 4X |
Banner QM42-DPS1-2Q Industrial Wireless – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Rectangular |
| IP Rating | IP67 |
| NEMA / UL Type Rating | NEMA 4X |
| Power | DC |
| Input Output | Serial (Modbus) |
| Connection | Pigtail QD |
| Quick Disconnect Type | M12 |
| Feature: Quick Disconnect | Yes |
| Device Type | Sensor |
| Modbus RTU | Yes |
| RS-485 | Yes |
| Power Supply | 10-30 V dc |
| Input Details | Pressure |
| Max Temp Operating Conditions (°C) | 85 |
| Min Temp Operating Conditions (°C) | -25 |
| Application: Temperature Input | Yes |
| Pressure Sensor Input | Yes |
