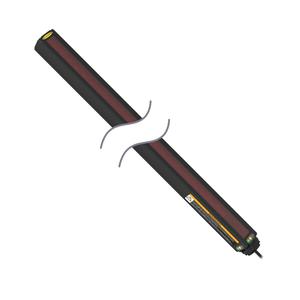

Bannerengineering MAHR26A: MINI-ARRAY High-Resolution Measuring Light Curtain
Technical Specifications of Banner MINI-ARRAY High-Resolution Measuring Light Curtain MAHR26A:
| Sensing Mode (Detailed) | Receiver |
| Power Supply | 12 V dc |
Bannerengineering MINI-ARRAY High-Resolution Measuring Light Curtain MAHR26A Technical Specifications
| Specification | Value |
|---|---|
| Sensing Mode (Detailed) | Receiver |
| Primary Housing Material | Aluminum |
| Housing Length (mm) | 724 |
| Device Type | Three-Piece |
| Beam Spacing | 2.5 mm |
| Power Supply | 12 V dc |
| Emitter/Receiver Range (m) | 0.38 - 1.8 |
| Max Relative Humidity | 95% |
| Minimum Object Sensitivity (mm) | 2.5 |
| Number of Beams | 256 |
| Max Temp (Β°C) | 50 |
| Array Length (mm) | 650 |
