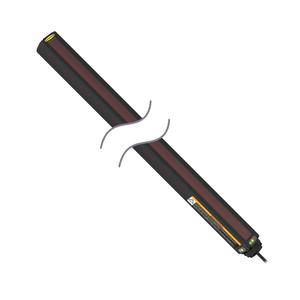

Bannerengineering MAE3032Q: MINI-ARRAY Two-Piece Measuring Light Curtain
Technical Specifications of Banner MINI-ARRAY Two-Piece Measuring Light Curtain MAE3032Q:
| Sensing Mode (Detailed) | Emitter |
| Quick Disconnect Type | M12 |
| Power Supply | 16-30 V dc |
Bannerengineering MINI-ARRAY Two-Piece Measuring Light Curtain MAE3032Q Technical Specifications
| Specification | Value |
|---|---|
| Sensing Mode (Detailed) | Emitter |
| Primary Housing Material | Aluminum |
| Quick Disconnect Type | M12 |
| Housing Length (mm) | 841 |
| Device Type | Two-Piece |
| Beam Spacing | 9.5 mm |
| Power Supply | 16-30 V dc |
| Emitter/Receiver Range (m) | 0.6 - 6.1 |
| Max Relative Humidity | 0.95 |
| Minimum Object Sensitivity (mm) | 12.7-19.1 |
| Number of Beams | 80 |
| Min Temp (Β°C) | -40 |
| Max Temp (Β°C) | 70 |
| Array Length (mm) | 752 |
