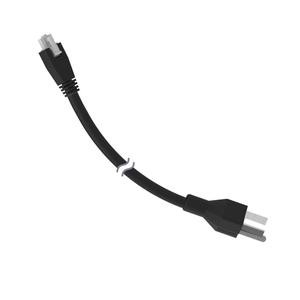

Banner LQMAC-325B Cordset
The Banner LQMAC-325B Cordset offers a Double Ended, Molex connection, 300 V ac/dc rating, and No Shield. Manufactured by Banner under the Banner Cordset category.
| Brand | Banner |
| Product Type | Cordsets |
| Model Number | LQMAC-325B |
Banner LQMAC-325B Cordset – Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | IP50 |
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Connector 1 Gender | Female |
| Connector 1 Orientation | Straight |
| Cordset Length (m) | 7.62 |
| Outside Cable Diameter (mm) | 6.6 |
| Connector 1 Number of Contacts | 3 |
| Number of Ends | Double Ended |
| Connector 2 Type | AC Plug |
| Connector 1 Type | Molex |
| Voltage Rating (V) | 300 V ac/dc |
| Minimum Temp. (Celsius) | -40 |
| Trunk Length (m) | No Trunk |
| Shield/No Shield | No Shield |
| Overmold Material and Color | PVC Black |
| Current Rating (A) | 3 |
| Maximum Temp. (Celsius) | 105 |
| Cordset Length Range (m) | 5.00-9.99 |
| Connector 2 Number of Contacts | 3 |
| Connector 2 Gender | Male |
| Connector 2 Orientation | Straight |
