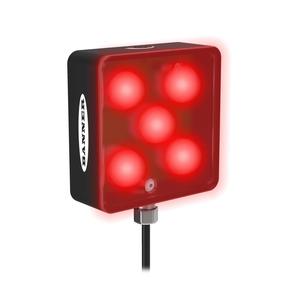

Banner LEDRA70XD5-XM Vision Light
The Banner LEDRA70XD5-XM Vision Light offers a Area Light type, 24 V dc supply voltage, and connection. Manufactured by Banner under the Banner Vision Light category, this model belongs to the right light Series.
| Brand | Banner |
| Product Type | Vision Light |
| Model Number | LEDRA70XD5-XM |
Banner LEDRA70XD5-XM Vision Light β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Rectangular |
| IP Rating | IP50 |
| Power | DC |
| Primary Housing Material | Low-Carbon Steel |
| Color Technology | Standard LED |
| Max Current Color (mA) | 500 |
| Number of Input Pins/Conductors | 3 |
| Supply Voltage | 24 V dc |
| Physical Dimensions (LxWxH or DxH mm) | 76.2 x 76.2 x 29.2 |
| High Temperature (up to 100Β° C) | 50 |
| Feature: Quick Disconnect | Yes |
| Device Type | Area Light |
| Connection Type | Pigtail QD |
| QD Type/Cable Length | 2 m; M8 |
| Color | Red |
| Window Material | Diffuse Acrylic |
