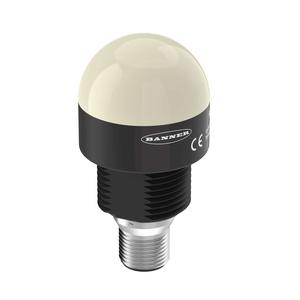

Bannerengineering K30PLSQ LED Indicators
Technical Specifications of Banner LED Indicators K30PLSQ:
| Housing Style | Base Mount - Dome Window |
| Connection | Integral QD |
| Supply Voltage | 10-30 V dc |
| Input Type | Communication Protocol |
Bannerengineering LED Indicators K30PLSQ Technical Specifications
| Specification | Value |
|---|---|
| Type | K30 Pro Series 30 mm Programmable Multicolor Indicator |
| Housing Style | Base Mount - Dome Window |
| IP Rating | IP67, IP69K |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Integral QD |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | M22 x 1.5 |
| Color Input Control | Communication Protocol |
| Number of Colors | Programmable |
| Product Size (mm) | 30 |
| Color Technology | RGB Configurable |
| Color Option 1 | RGB |
| Animation Option 1 | Modbus Controlled |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 60 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 10-30 V dc |
| Input Type | Communication Protocol |
| Physical Dimensions (LxWxH or DxH mm) | 30.0 x 57.0 |
| Environmental Rating | IP67; IP69K |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Simultaneous Colors On |
| Feature: Quick Disconnect | Yes |
| Modbus RTU | Yes |
| Feature: Washdown Rated | Yes |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50Β°C |
| Storage Temp (Β°C) | -40 to 70 |
| Dimming Option | Programmable |
| PICK-IQ (Modbus RTU) | Yes |
