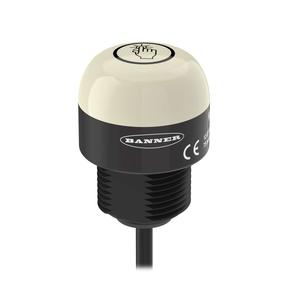

Home Brands Banner Touch Buttons K30APT2BWCQP Banner K30APT2BWCQP Touch Button The Banner K30APT2BWCQP Touch Button offers a Base Mount - Dome Window housing style, Pigtail QD Connection, Normally Open operation, and IP67, IP69K rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.
Connection Pigtail QD Color Technology Standard LED Supply Voltage 12-30 V dc
Banner K30APT2BWCQP Touch Button - Technical Specifications Specification Value Type K30 Core Series 30 mm Multipurpose Illuminated Touch Buttons Housing Style Base Mount - Dome Window IP Rating IP67, IP69K Cable Length (m) 0.15 Power DC Primary Housing Material Polycarbonate Connection Pigtail QD Operation Normally Open Feature: Audible No Display No Mounting Thread M22 x 1.5 Color Input Control Individual (One wire/color, same number of colors as input wires) Number of Colors 2 Product Size (mm) 30 Color Technology Standard LED Color Option 1 Blue Animation Option 1 Solid On Quick Disconnect Type M12 Color Option 2 White Max Current Color (mA) 55 Number of Input Pins/Conductors 4 Supply Voltage 12-30 V dc Input Type PNP Max Input Response Time (ms) 300 Environmental Rating IP67; IP69K High Temperature (up to 100Β° C) 50 Min Op. Temperature (Β°C) -40 Multi-Color Device Single Color On Storage Temp (Β°C) -40 to 70 Activation Function Capacitive Touch Acknowledge (Sense) Light Yellow Pick-to-Light Function C Output Type PNP Max Output Response Time (ms) 150 Button Operation Momentary Job Light Green Lumens Color 1 1 Color 1 - Wavelength/Color Temp/Coordinates 470 nm Lumens Color 2 5 Color 2 - Wavelength/Color Temp/Coordinates 5700K
