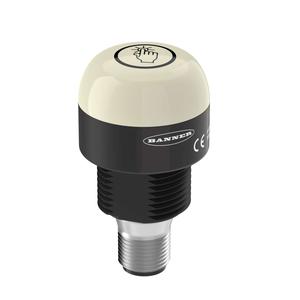

Home Brands Banner Touch Buttons K30ABT2YWHQ Banner K30ABT2YWHQ Touch Button The Banner K30ABT2YWHQ Touch Button offers a Base Mount - Dome Window housing style, Integral QD Connection, Normally Open operation, and IP67, IP69K rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.
Connection Integral QD Color Technology Standard LED Supply Voltage 12-30 V dc
Banner K30ABT2YWHQ Touch Button - Technical Specifications Specification Value Type K30 Core Series 30 mm Multipurpose Illuminated Touch Buttons Housing Style Base Mount - Dome Window IP Rating IP67, IP69K NEMA / UL Type Rating NEMA and UL 4X, 13 Power DC Primary Housing Material Polycarbonate Connection Integral QD Operation Normally Open Feature: Audible No Display No Mounting Thread M22 x 1.5 Color Input Control Individual (One wire/color, same number of colors as input wires) Number of Colors 2 Product Size (mm) 30 Color Technology Standard LED Color Option 1 Yellow Animation Option 1 Solid On Quick Disconnect Type M12 Color Option 2 White Max Current Color (mA) 55 Number of Input Pins/Conductors 5 Supply Voltage 12-30 V dc Input Type Bimodal (PNP/NPN) Max Input Response Time (ms) 300 Physical Dimensions (LxWxH or DxH mm) 30.0 x 54.5 Environmental Rating IP67; IP69K High Temperature (up to 100Β° C) 50 Min Op. Temperature (Β°C) -40 Primary Housing Color Black Primary Window Material Polycarbonate Diffused Multi-Color Device Single Color On Max Op. Relative Humidity Non-Condensing (%) 90% @ 50Β°C Storage Temp (Β°C) -40 to 70 Activation Function Capacitive Touch Output Type Bipolar (NPN & PNP) Max Output Response Time (ms) 150 Button Operation Momentary Lumens Color 1 4.4 Color 1 - Wavelength/Color Temp/Coordinates 580 nm Lumens Color 2 5 Color 2 - Wavelength/Color Temp/Coordinates 7500K
