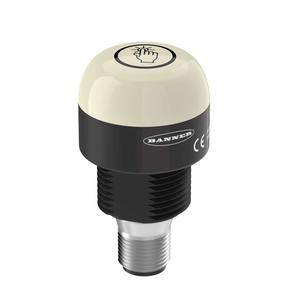

Bannerengineering K30ABT2BWHQ Touch Buttons
Technical Specifications of Banner Touch Buttons K30ABT2BWHQ:
| Connection | Integral QD |
| Color Technology | Standard LED |
| Supply Voltage | 12-30 V dc |
| IP Rating | IP67, IP69K |
Bannerengineering Touch Buttons K30ABT2BWHQ Technical Specifications
| Specification | Value |
|---|
| Type | K30 Core Series 30 mm Multipurpose Illuminated Touch Buttons |
| Housing Style | Base Mount - Dome Window |
| IP Rating | IP67, IP69K |
| NEMA / UL Type Rating | NEMA and UL 4X, 13 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Integral QD |
| Operation | Normally Open |
| Feature: Audible | No |
| Display | No |
| Mounting Thread | M22 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 2 |
| Product Size (mm) | 30 |
| Color Technology | Standard LED |
| Color Option 1 | Blue |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Color Option 2 | White |
| Max Current Color (mA) | 55 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 12-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Max Input Response Time (ms) | 300 |
| Physical Dimensions (LxWxH or DxH mm) | 30.0 x 54.5 |
| Environmental Rating | IP67; IP69K |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Single Color On |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50Β°C |
| Storage Temp (Β°C) | -40 to 70 |
| Activation Function | Capacitive Touch |
| Output Type | Bipolar (NPN & PNP) |
| Max Output Response Time (ms) | 150 |
| Button Operation | Momentary |
| Lumens Color 1 | 1 |
| Color 1 - Wavelength/Color Temp/Coordinates | 470 nm |
| Lumens Color 2 | 5 |
| Color 2 - Wavelength/Color Temp/Coordinates | 7500K |
