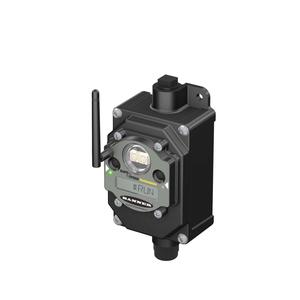

Banner DX80N9X1S-P1E Industrial Wireless
The Banner DX80N9X1S-P1E Industrial Wireless offers a Flex Power power, 10-30 V dc or 3.6-5.5 V dc low power option power supply, and IP67 rating. Manufactured by Banner under the Banner Industrial Wireless category, this model belongs to the DX Series.
| Power Supply | 10-30 V dc or 3.6-5.5 V dc low power option |
| Power | Flex Power |
| NEMA / UL Type Rating | NEMA 4X |
Banner DX80N9X1S-P1E Industrial Wireless β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Integrated Battery |
| IP Rating | IP67 |
| NEMA / UL Type Rating | NEMA 4X |
| Power | Flex Power |
| Input Output | Analog & Discrete |
| Device Type | Node |
| Power Supply | 10-30 V dc or 3.6-5.5 V dc low power option |
| Input Details | 2 Selectable Discrete, two analog and two thermistor |
| Max Temp Operating Conditions (Β°C) | 65 |
| Hazardous/Intrinsically Safe Classification | Class I, Division 2/Zone 2; ATEX Zone 2 |
| LCD Display | Yes |
| Min Temp Operating Conditions (Β°C) | -20 |
| Ships With Battery | Yes |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Star Topology | Yes |
| Tree Topology | No |
| Feature: Hazardous Area | Yes |
| Application: Temperature Input | Yes |
| Wireless | Yes |
| Wireless Radio Frequency | 900 MHz |
| Cert: Canada | Yes |
| Cert: Thailand | Yes |
| Min Operating Temperature ( Β°C) | -20 |
| Max Operating Temperature ( Β°C) | 65 |
| Analog Inputs | Yes |
| Discrete Inputs | Yes |
| Discrete Outputs | Yes |
| Output Details | 2 NMOS Discrete |
| Cert: Australia/New Zealand | Yes |
