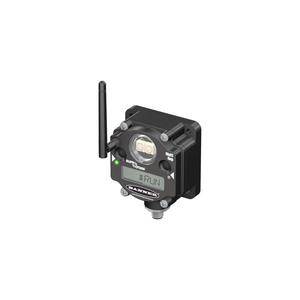

Banner DX80DR2M-H4 Industrial Wireless
The Banner DX80DR2M-H4 Industrial Wireless offers a Flex Power power, 10-30 V dc or 3.6-5.5 V dc low power option power supply, and IP67 rating. Manufactured by Banner under the Banner Industrial Wireless category, this model belongs to the DX Series.
| Power Supply | 10-30 V dc or 3.6-5.5 V dc low power option |
| Power | Flex Power |
| NEMA / UL Type Rating | NEMA 4X |
Banner DX80DR2M-H4 Industrial Wireless โ Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Enclosed Terminals |
| IP Rating | IP67 |
| NEMA / UL Type Rating | NEMA 4X |
| Power | Flex Power |
| Input Output | RTD |
| Device Type | Multihop Data Radio |
| Power Supply | 10-30 V dc or 3.6-5.5 V dc low power option |
| Input Details | 4 3-wire RTDs |
| Max Temp Operating Conditions (ยฐC) | 80 |
| LCD Display | Yes |
| Min Temp Operating Conditions (ยฐC) | -20 |
| Ships With Battery | No |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Star Topology | Yes |
| Tree Topology | Yes |
| Application: Temperature Input | Yes |
| Wireless | Yes |
| Wireless Radio Frequency | 2.4 GHz |
| Cert: China | Yes |
| Cert: Korea | Yes |
| Cert: Brazil | Yes |
| Cert: Canada | Yes |
| Cert: Singapore | Yes |
| Min Operating Temperature ( ยฐC) | -20 |
| Max Operating Temperature ( ยฐC) | 80 |
| RS-232 | Yes |
