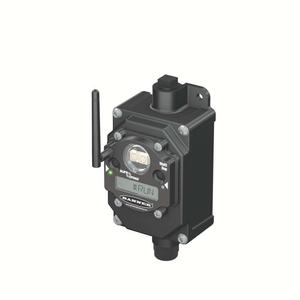

Banner DX80DR2M-H15E Industrial Wireless
The Banner DX80DR2M-H15E Industrial Wireless offers a AC power, 100-277 V ac at 50/60 Hz power supply, and IP65 rating. Manufactured by Banner under the Banner Industrial Wireless category, this model belongs to the DX Series.
| Power Supply | 100-277 V ac at 50/60 Hz |
| Power | AC |
| NEMA / UL Type Rating | NEMA 4X |
Banner DX80DR2M-H15E Industrial Wireless – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Enclosed Terminals |
| IP Rating | IP65 |
| NEMA / UL Type Rating | NEMA 4X |
| Power | AC |
| Input Output | Analog & Discrete |
| Device Type | Multihop Data Radio |
| Modbus RTU | Yes |
| RS-485 | Yes |
| Power Supply | 100-277 V ac at 50/60 Hz |
| Input Details | 2 Discrete, two 0 - 20 mA current analog |
| Max Temp Operating Conditions (°C) | 80 |
| LCD Display | Yes |
| Min Temp Operating Conditions (°C) | -20 |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Star Topology | Yes |
| Tree Topology | Yes |
| Wireless | Yes |
| Wireless Radio Frequency | 2.4 GHz |
| Cert: China | Yes |
| Cert: Korea | Yes |
| Cert: Brazil | Yes |
| Cert: Canada | Yes |
| Cert: Singapore | Yes |
| Analog Inputs | Yes |
| Analog Outputs | Yes |
| Discrete Inputs | Yes |
| Discrete Outputs | Yes |
| Output Details | 2 Discrete, two 0 - 10 V dc analog, two AC/DC relay |
