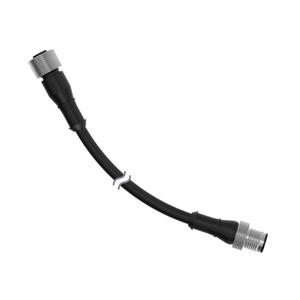

Banner CSB-M1251FM1251DB9 Cordset
The Banner CSB-M1251FM1251DB9 Cordset offers a 250 V ac/dc rating, and No Shield. Manufactured by Banner under the Banner Cordset category.
| Brand | Banner |
| Product Type | Cordsets |
| Model Number | CSB-M1251FM1251DB9 |
Banner CSB-M1251FM1251DB9 Cordset β Technical Specifications
| Specification | Value |
|---|
| IP Rating | IP67 |
| Voltage Rating (V) | 250 V ac/dc |
| Minimum Temp. (Celsius) | -40 |
| Trunk Length (m) | 0.3 |
| Shield/No Shield | No Shield |
| Current Rating (A) | 4 |
| Maximum Temp. (Celsius) | 105 |
| Branches: Orientations | Straight, Straight |
| Trunk: Cable Jacket Material | PVC |
| Branches: Genders | Female, Male |
| Branches: Number of Contacts | 9, 5 |
| Branches: Connector Types | DB9, M12 |
| Branches: Cable Jacket Material | PVC, PVC |
| Splitter: Overmold Material and Color | PUR Black |
| Wiring | Custom |
| Number of Branches | 2 |
| Trunk: Connector Type | M12 |
| Trunk: Number of Contacts | 5 |
| Trunk: Orientation | Straight |
| Trunk: Gender | Female |
