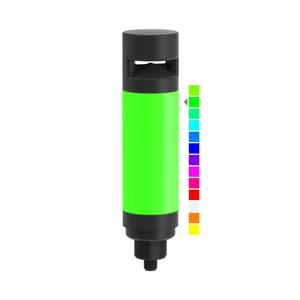

Home Brands Banner Tower Lights CL50PRGB7AQ Bannerengineering CL50PRGB7AQ Tower Light The Banner CL50PRGB7AQ Tower Light offers Base Mount - Tower housing style, 14 No. of Colors, M30 x 1.5 Mounting Method, and Integral QD connection. Manufactured by Banner under the Banner Tower Lights category, this model belongs to the TL Series.
Housing Style Base Mount - Tower Supply Voltage 12-30 V dc Input Type Bimodal (PNP/NPN)
Banner CL50PRGB7AQ Tower Light β Technical Specifications Specification Value Type CL50 Pro Series 50 mm Programmable Column Lights Housing Style Base Mount - Tower IP Rating IP65 NEMA / UL Type Rating UL 4X Power DC Primary Housing Material Polycarbonate Connection Integral QD Feature: Audible Yes Display No Indication Yes Mounting Thread M30 x 1.5 Color Input Control Multiple (One or more wires/color, enables more colors than input wires) Number of Colors 14 Product Size (mm) 50 Color Technology RGB Configurable Color Option 1 Red Quick Disconnect Type M12 Color Option 2 Green Color Option 3 Blue Color Option 4 Yellow Color Option 5 White Max Current Color (mA) 255 Wire Selectable Function Multi-Function Number of Input Pins/Conductors 5 Supply Voltage 12-30 V dc Input Type Bimodal (PNP/NPN) Max Input Response Time (ms) 250 Physical Dimensions (LxWxH or DxH mm) 50.0 x 68.0 Environmental Rating IP65 High Temperature (up to 100Β° C) 50 Min Op. Temperature (Β°C) -20 Primary Housing Color Black Primary Window Material Polycarbonate Diffused Multi-Color Device Single Color On Feature: Quick Disconnect Yes Audible Alarm Type Continuous Max Audible Intensity (db at 1m) 93 Audible Operating Frequency (kHz) 3.1 Max Current - Audible Alarm (mA) 35 Max Op. Relative Humidity Non-Condensing (%) 90% @ 50Β°C Storage Temp (Β°C) -40 to 70 I/O Block Compatible Yes Lumens Color 1 29.1 Color 1 - Wavelength/Color Temp/Coordinates 620 nm Lumens Color 2 52.2 Color 2 - Wavelength/Color Temp/Coordinates 522 nm Lumens Color 3 11.6 Color 3 - Wavelength/Color Temp/Coordinates 466 nm Lumens Color 4 75.9 Color 4 - Wavelength/Color Temp/Coordinates 576 nm Lumens Color 5 79.4 Color 5 - Wavelength/Color Temp/Coordinates 5700K Color Option 6 Magenta Lumens Color 6 36.7 Color 6 - Wavelength/Color Temp/Coordinates 0.370, 0.185 Color Option 7 Cyan Lumens Color 7 57.9 Color 7 - Wavelength/Color Temp/Coordinates 493 nm Pro-Editor Compatible (Discrete) Yes
