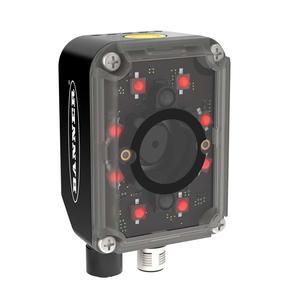

Banner ABR7106-RSE2 Barcode Reader
The Banner ABR7106-RSE2 Barcode Reader offers a Imager BCR device type, 1280 x 1024 pixels image resolution, and 6 mm lens. Manufactured by Banner under the Banner Barcode Reader category, this model belongs to the ABR Series.
| Brand | Banner |
| Product Type | Barcode Reader |
| Model Number | ABR7106-RSE2 |
Banner ABR7106-RSE2 Barcode Reader β Technical Specifications
| Specification | Value |
|---|---|
| Type | ABR Barcode Series |
| IP Rating | IP67 |
| Primary Housing Material | Aluminum |
| Device Type | Imager BCR |
| Feature: Washdown Rated | Yes |
| Camera Housing Size (HxWxL mm) | 43 x 54 x 95 |
| Image Resolution | 1280 x 1024 pixels |
| Lens (mm) | 6 |
| Imager Type | Grayscale |
| Feature: PC Interface | Yes |
| EtherNet/IP | Yes |
| Modbus/TCP | Yes |
| PROFINET | Yes |
| RS-232 | Yes |
| FTP | Yes |
| Light Color | Red |
| Code Type | 1D, 2D |
| RS-422 | Yes |
