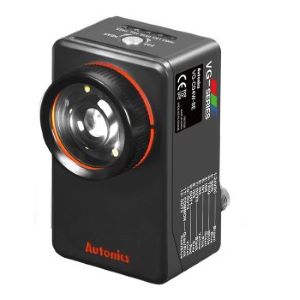

Autonics VG-C04W-16E Vision Sensor
The Autonics VG-C04W-16E Vision Sensor offers 100mm sensing distance, 24VDC power supply, Rated input 24VDC input signal , White light color , 500VAC~ 50/60Hz for 1 min.. Manufactured by Autonics under the Autonics Vision Sensor category, this model belongs to the Autonics VG Series.
| Brand | Autonics |
| Product Type | Color Vision Sensors |
| Model Number | VG-C04W-16E |
Autonics VG-C04W-16E Vision Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Min. sensing distance | 100mm |
| Inspection_Work group | 32 |
| Trigger mode | External trigger, internal trigger, free-run trigger |
| Output_FTP transmission | Possible |
| Indicator | αPower indicator(POWER), Ethernet connection indicator(LINK), pass indicator(PASS): Green LEDαData transmission indicator(DATA): Orange LEDαFailure indicator(FAIL): Red LED |
| Power supply | 24VDC |
| Current consumption | 1A |
| Input_Signal | Rated input 24VDC |
| Output_Signal | NPN or PNP open collector outputMax. 24VDC @(=) 50mA, residual voltage: max. 1.2VDC @(=) |
| Protection circuit | Output short over current protection circuit |
| Vibration | 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours |
| Shock | 300m/sΒ² (approx. 30G) in each X, Y, Z direction for 3 times |
| Environment_Ambient temperature | 0 to 45β, storage: -20 to 70β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case: aluminium, lens cover/focus adjuster: polycarbonate, cable: polyurethane |
| Inspection_Inspection item | Alignment, brightness, contrast, area, edge, shape comparison, length, angle, diameter, object counting, color identification, area of color, object of color counting |
| Inspection_Simultaneous inspection | 64 |
| Inspection_Camera frame per second | Max. 60fps |
| Image snap_Image filter | Preprocessing, external filter(color filter, polarizing filter) |
| Image snap_Image element | 1/3 inch color CMOS |
| Image snap_Resolution | 752Γ480 pixel |
| Image snap_Camera frame per second | Max. 60fps |
| Image snap_Shutter | Global shutter |
| Image snap_Exposure time | 20 to 10,000γ² |
| Light_ON/OFF method | Pulse |
| Light_Color | White |
| Input_Type | External trigger input(TRIG), encoder input(IN2, IN3), work group change(IN0 to IN3) |
| Output_Type | Control output(OUT0 to OUT3): inspection completion, inspection result, external light trigger, alarm, camera busy |
| Insulation resistance | Over 20M⦠(at 500VDC megger) |
| Dielectric strength | 500VAC~ 50/60Hz for 1 min. |
| Accessories | Assembly tool, bracket A, mounting screw: 2 |
| Sold separately | Light, color filter, polarizing filter, power I/O cable, Ethernet cable, bracket B, protection cover |
| Weight | Approx. 416g(approx. 274g) |
Ask for the Pricing of 0.4M Color Vision Sensors VG-C04W-16E at unbeatable prices. Detailed Specifications of VG-C04W-16E features minimum sensing distance of 100mm, these sensors support 32. They feature versatile trigger modes, including External trigger, internal trigger, free-run trigger, with FTP transmission Possible output capabilities for seamless data transfer. Operating on an 24VDC power supply, they have a current consumption of 1A, ensuring efficient performance. Built with a durable Case: aluminium, lens cover/focus adjuster: polycarbonate, cable: polyurethane, the sensors offer superior protection and longevity. They function reliably in ambient temperatures ranging from 0 to 45β, storage: -20 to 70β and humidity levels of 35 to 85% RH, storage: 35 to 85% RH. With an IP67(IEC standard), these sensors are suitable for harsh environments. Now's the Time to Secure a Quote for your requirement of 0.4M Color Vision Sensors. We're committed to offering more favorable pricing and more responsive support than other Traders.
