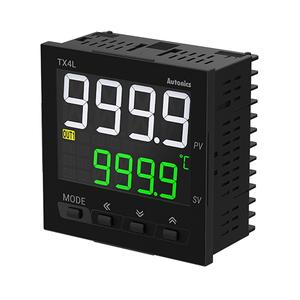

Autonics TX4L-24S Temperature Controller
The Autonics TX4L-24S Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, 4-digit 11-segment LCD, 50ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TX Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TX4L-24S |
Autonics TX4L-24S Temperature Controller โ Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 50ms |
| Control output | SSR drive(12VDC @(=)) [ON/OFF, phase, cycle] |
| Display method | 4-digit 11-segment LCD |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9โ/โ |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | 0.5 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50โ, storage: -20 to 60โ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation (mark: @(INS), dielectric strength between primary circuit and secondary circuit: 3kV) |
| Protection structure | IP50(front panel) |
| Input specification | Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC)RTD: DPt100ฮฉ, Cu50ฮฉ |
| Option output | Alarm 1/2 |
| Display accuracy_RTD | โขAt room temperature(23โยฑ5โ):(PV ยฑ0.3% or ยฑ1โ, select the higher one) ยฑ1-digitโขOut of room temperature:(PV ยฑ0.5% or ยฑ2โ, select the higher one) ยฑ1-digit |
| Display accuracy_Thermocouple | โขAt room temperature(23โยฑ5โ):(PV ยฑ0.3% or ยฑ1โ, select the higher one) ยฑ1-digitโขOut of room temperature:(PV ยฑ0.5% or ยฑ2โ, select the higher one) ยฑ1-digit |
| Hysteresis(adjustable sensitivity) | 1 to 100โ/โ(0.1 to 50.0โ/โ) variable |
| Weight | Approx. 290g(approx. 206g) |
Mail Us for your needs in LCD Display PID Temperature Controllers TX4L-24S with budget-friendly prices. The Main Technical Parameters of TX4L-24S include the power supply range of 100-240VAC~ 50/60Hz, ensuring reliable operation across various applications. The controller boasts a sampling cycle of 50ms for precise temperature monitoring and control. It features a control output of SSR drive(12VDC @(=)) [ON/OFF, phase, cycle], suitable for versatile control requirements. The control methods include ON/OFF, P, PI, PD, PID, catering to diverse industrial needs. Despite its robust capabilities, the device is lightweight at Approx. 290g(approx. 206g). Operating conditions are optimized for ambient temperatures of -10 to 50โ, storage: -20 to 60โ, with a humidity range of 35 to 85% RH, storage: 35 to 85% RH for both operation and storage. The controller is 4-digit 11-segment LCD, ensuring simplicity in design while maintaining high functionality. Customize Your Experience with a Quote for your requirement of LCD Display PID Temperature Controllers. Experience the difference with our competitive pricing and superior support over other Suppliers.
