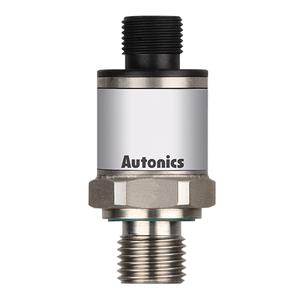

Home Autonics Pressure Trasmitters TPS30-G36AG4-00 Autonics TPS30-G36AG4-00 Pressure Trasmitter The Autonics TPS30-G36AG4-00 Pressure Transmitter offers M12 connector type , 11-36VDC power supply, Max. ±0.2% F.S. hysteresis , 0 to 1MPa pressure range , G1/4(PF)(EN837) pressure port. Manufactured by Autonics under the Autonics Pressure Transmitter category, this model belongs to the Autonics TPS30 Series .
Brand Autonics Product Type Pressure Transmitter Model Number TPS30-G36AG4-00
Autonics TPS30-G36AG4-00 Pressure Trasmitter – Technical Specifications Specification Value Measurement pressure Gauge pressure Measured materials Liquid, gas, oil (lnappropriate to corrosion environment for stainless steel 316L) Power supply 11-36VDC Linearity Max. ±0.2% F.S. Hysteresis Max. ±0.2% F.S. Accuracy Max. ±0.5% F.S. (including linearity, hysteresis, reproducibility) Environment_Fluid temperature -40 to 125℃ Protection structure IP67(IEC standard) Connection type M12 connector type Output specification Current output(DC4-20mA) Environment_Ambient temperature -40 to 85℃, storage: -40 to 125℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Stainless steel 316L (head part of head type: aluminium diecasting), connector: Polybutylene terephthalate G30,water-proof rubber: silicon Pressure range 0 to 1MPa Pressure port G1/4(PF)(EN837) Weight approx. 130g (approx. 50g)
