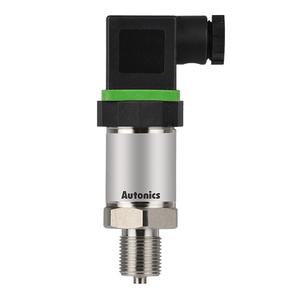

Autonics TPS20-G23F8-00 Pressure Trasmitter

Name: Autonics TPS20-G23F8-00
Brand: Autonics
SKU: TPS20-G23F8-00
Rating: 4.8 (4 reviews)

The Autonics TPS20-G23F8-00 Pressure Transmitter offers DIN connector type, 15-35VDC power supply, ±0.3% F.S. hysteresis , 0 to 1kgf/cm² pressure range , R3/8(PF) pressure port. Manufactured by Autonics under the Autonics Pressure Transmitter category, this model belongs to the Autonics TPS20 Series.

Datasheet

Brand	Autonics
Product Type	Pressure Transmitter
Model Number	TPS20-G23F8-00

Autonics TPS20-G23F8-00 Pressure Trasmitter – Technical Specifications

Specification	Value
Measurement pressure	Gauge pressure
Connector	DIN connector type
Measured materials	Liquid, gas, oil (except corrosive environment of stainless steel type 316)
Power supply	15-35VDC
Linearity	±0.3％ F.S. (-10 to 50℃), ±0.5％F.S. (50 to 70℃)
Hysteresis	±0.3% F.S.
Environment_Ambient temperature	-10 to 70℃, storage: -10 to 70℃
Environment_Ambient humidity	5 to 95% RH, storage: 5 to 95% RH
Material	Sealing, diaphragm, connection: stainless steel type 316, O-ring: fluoro rubber
Pressure range	0 to 1kgf/cm²
Pressure port	R3/8(PF)
Weight	Approx. 350g (approx. 320g) (based on head type)
