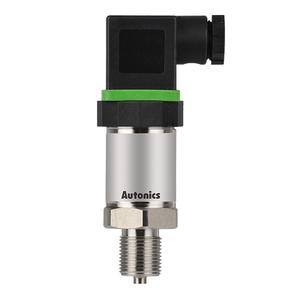

Autonics TPS20-A26P2-00 Pressure Trasmitter

Name: Autonics TPS20-A26P2-00
Brand: Autonics
SKU: TPS20-A26P2-00
Rating: 4.9 (4 reviews)

The Autonics TPS20-A26P2-00 Pressure Transmitter offers DIN connector type, 15-35VDC power supply, ±0.3% F.S. hysteresis , 0 to 10kgf/cm² pressure range , G1/2(with adapter) pressure port. Manufactured by Autonics under the Autonics Pressure Transmitter category, this model belongs to the Autonics TPS20 Series.

Datasheet

Brand	Autonics
Product Type	Pressure Transmitter
Model Number	TPS20-A26P2-00

Autonics TPS20-A26P2-00 Pressure Trasmitter – Technical Specifications

Specification	Value
Measurement pressure	Absolute pressure
Connector	DIN connector type
Measured materials	Liquid, gas, oil (except corrosive environment of stainless steel type 316)
Power supply	15-35VDC
Linearity	±0.3％ F.S. (-10 to 50℃), ±0.5％F.S. (50 to 70℃)
Hysteresis	±0.3% F.S.
Environment_Ambient temperature	-10 to 70℃, storage: -10 to 70℃
Environment_Ambient humidity	5 to 95% RH, storage: 5 to 95% RH
Material	Sealing, diaphragm, connection: stainless steel type 316, O-ring: fluoro rubber
Pressure range	0 to 10kgf/cm²
Pressure port	G1/2(with adapter)
Weight	Approx. 350g (approx. 320g) (based on head type)
