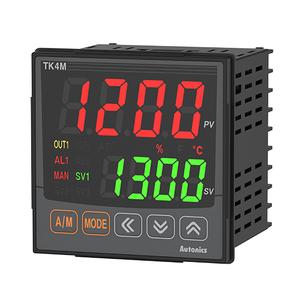

Autonics TK4M-T4RR Temperature Controller
The Autonics TK4M-T4RR Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, 4-digit 7-segment LED, 50ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TK Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TK4M-T4RR |
Autonics TK4M-T4RR Temperature Controller β Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 50ms |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9β/β(0.1 to 999.9%) |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50β, storage: -20 to 60β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 2kV) |
| Option input | CT, Digital(DI-1) |
| Protection structure | IP65(front panel) |
| Display accuracy_CT input | Β±5% F.S. Β±1-digit |
| Input specification | Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel IIRTD: DPt100Ξ©, DPt50Ξ©, JPt100Ξ©, Cu100Ξ©, Cu50Ξ©, Nikel 120Ξ©Analog: 0-100mV, 0-5V, 1-5V, 0-10V0-20mA, 4-20mA |
| Option output | Alarm 1, RS485 comm. |
| Display accuracy_RTD | β’At room temperature(23βΒ±5β):(PV Β±0.3% or Β±1β, select the higher one) Β±1-digitβ’Out of room temperature:(PV Β±0.5% or Β±2β, select the higher one) Β±1-digit |
| Display accuracy_Thermocouple | β’At room temperature(23βΒ±5β):(PV Β±0.3% or Β±1β, select the higher one) Β±1-digitβ’Out of room temperature:(PV Β±0.5% or Β±2β, select the higher one) Β±1-digit |
| Hysteresis(adjustable sensitivity) | RTD/Thermocouples: 1 to 100β/β(0.1 to 100.0β/β) variable Analog: 1 to 100-digit |
| Control output 1 | Relay(250VAC~ 3A) |
| Display accuracy_Analog | β’At room temperature(23βΒ±5β): Β±0.3% F.S. Β±1-digitβ’Out of range of room temperature: Β±0.5β% F.S. Β±1-digit |
| Control output 2 | Relay(250VAC~ 3A) |
| Weight | Approx. 210g(approx. 140g) |
The Autonics TK4M-T4RR Temperature Controller is designed for precise thermal control with support for various input types such as thermocouples (K, J, T, etc.), RTDs (Pt100, Cu100), and analog signals (0β10V, 4β20mA). It operates on a wide 100β240VAC~ 50/60Hz power supply and delivers a rapid 50ms sampling cycle to ensure accurate and responsive temperature regulation. Featuring PID, P, PI, PD, and ON/OFF control methods, it offers flexibility across diverse heating or cooling systems. The 4-digit 7-segment LED display provides clear visibility, while dual relay outputs and SSR drive options support seamless integration into industrial automation setups like PLCs and SCADA networks. Its IP65-rated front panel ensures high resistance against dust and moisture, ideal for rugged factory floors or processing units.
Built for reliability and configurability, the TK4M-T4RR allows precise tuning with customizable proportional band (0.1 to 999.9Β°C), integral time (0 to 9999 sec), and derivative time (0 to 9999 sec). Whether you're maintaining stable heat in a packaging machine, regulating temperature in a baking oven, or controlling thermal conditions in chemical processing equipment, this controller ensures consistent output. Its high accuracy, even under fluctuating ambient conditions, is backed by tight tolerances and safety-rated insulation, making it a dependable choice for long-term industrial use.
Engineers prefer the Autonics TK4M-T4RR for its ease of setup, compact build, and superior compatibility with various sensor and output types. Junior maintenance staff find the user-friendly interface helpful for quick learning and troubleshooting, while senior engineers benefit from the advanced configuration features and communication options like RS485. If you're looking to improve process stability, reduce manual intervention, and increase equipment lifespan, this model delivers proven results. Visit the official Autonics site for more details or contact IndMALL for competitive pricing and support from trusted vendors.
