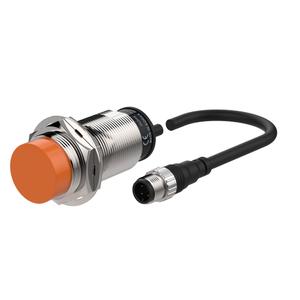

Autonics PRWL30-10DN Proximity Sensor
The Autonics PRWL30-10DN Proximity Sensor offers 10mm sensing distance, NPN Normally Open output, Flush, M30, Long body, 400Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PR Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRWL30-10DN |
Autonics PRWL30-10DN Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 10mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 30Γ30Γ1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | NPN Normally Open |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Flush |
| Cable Standard/material | Standard connector |
| Body length | Long body |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Γ 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 400Hz |
| Weight | Approx. 195g(approx. 158g) |
Ask for the Pricing of Cylindrical Inductive Proximity Sensors PRWL30-10DN at unbeatable prices. Detailed Specifications of PRWL30-10DN features the key specifications include a sensing distance of 10mm designed for a standard target of 30Γ30Γ1mm(iron). This sensor features a Current specification of Current consumption: Max. 10mA and a control output with NPN Normally Open configurations. It operates on a Wire type and power DC 3-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 400Hz ensures quick and accurate performance. Now's the Time to Secure a Quote for your requirement of Cylindrical Inductive Proximity Sensors. We're committed to offering more favorable pricing and more responsive support than other Traders.
