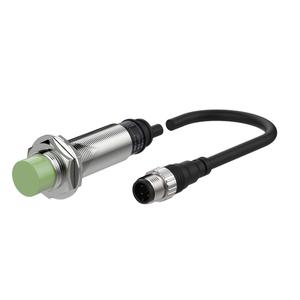

Autonics PRWL18-8AO Proximity Sensor
The Autonics PRWL18-8AO Proximity Sensor offers 8mm sensing distance, Normally Open output, Non-flush, M18, Long body, 20Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PR Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRWL18-8AO |
Autonics PRWL18-8AO Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M18 |
| Sensing distance | 8mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 25Γ25Γ1mm(iron) |
| Current specification | Leakage current: Max. 2.5mA |
| Control output | Normally Open |
| Wire type and power | AC 2-wire type 100-240VAC~ |
| Installation | Non-flush |
| Cable Standard/material | Standard connector |
| Body length | Long body |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV) |
| Residual voltage | Max. 10V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Brass(nickel plated) |
| Response frequency | 20Hz |
| Weight | Approx. 90g(approx. 78g) |
Obtain a Quote for Cylindrical Inductive Proximity Sensors PRWL18-8AO at economical prices. Specifications Overview for PRWL18-8AO reveals the key specifications include a sensing distance of 8mm designed for a standard target of 25Γ25Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 2.5mA and a control output with Normally Open configurations. It operates on a Wire type and power AC 2-wire type 100-240VAC~. Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 20Hz ensures quick and accurate performance. Take the First Step with a Quote for your requirement of Cylindrical Inductive Proximity Sensors. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
