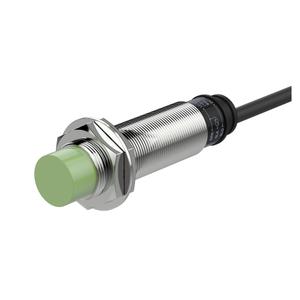

Autonics PRL18-8DN2 Proximity Sensor
The Autonics PRL18-8DN2 Proximity Sensor offers 8mm sensing distance, NPN Normally Closed output, Non-flush, M18, Long body, 350Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PR Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRL18-8DN2 |
Autonics PRL18-8DN2 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M18 |
| Sensing distance | 8mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 25×25×1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | NPN Normally Closed |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Non-flush |
| Cable Standard/material | Standard cable |
| Body length | Long body |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 350Hz |
| Weight | Approx. 142g(approx. 130g) |
Please speak to our Technical Engineer for Cylindrical Inductive Proximity Sensors PRL18-8DN2 at attractive prices. Technical Specs Summary of PRL18-8DN2 includes the key specifications include a sensing distance of 8mm designed for a standard target of 25×25×1mm(iron). This sensor features a Current specification of Current consumption: Max. 10mA and a control output with NPN Normally Closed configurations. It operates on a Wire type and power DC 3-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70℃, storage: -30 to 80℃ and can be stored at temperatures ranging. A response frequency of 350Hz ensures quick and accurate performance. Match Your Needs with a Quote for your requirement of Cylindrical Inductive Proximity Sensors. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
