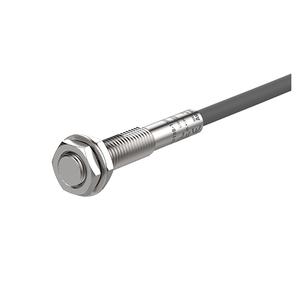

Autonics PRFD08-2DP-V Proximity Sensor
The Autonics PRFD08-2DP-V Proximity Sensor offers 2mm sensing distance, Max. 100mA output, , 8mm, M12 plug connector, 150Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRF Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRFD08-2DP-V |
Autonics PRFD08-2DP-V Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | 8mm |
| Sensing distance | 2mm |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Standard sensing target | 12×12×1mm(iron) |
| Connection | Cable type |
| Connector type | M12 plug connector |
| Power supply | 10 - 30 VDC@(=)(ripple P-P: ≤ 10 %) |
| Current specification | Current consumption: Max. 20mA |
| Control output | Max. 100mA |
| Residual voltage | ≤ 2.5 V |
| Protection circuit | Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit |
| Insulation resistance | ≥ 50 MΩ (500 VDC@(=) megger) |
| Dielectric strength | Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration | 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours |
| Shock | 500 m/s² (≈ 50 G) in each X, Y, Z direction for 10 times) |
| Environment_Ambient temperature | -25 to 70℃, storage: -25 to 70℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP66, IP67 (IEC standard) |
| Material | Case / Nut: stainless steel 303 (SUS303), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303) |
| Response frequency | 150Hz |
| Indicator | Operation indicator (orange), stable indicator (green), Abnormal detect indicator (cross-flashing green, orange) |
| Weight | ≈ 60 g (≈ 85 g) |
Get A Quote for Long-Distance Proximity Sensor PRFD08-2DP-V at the best price. Here are the brief Technical Specifications of PRFD08-2DP-V are the key specifications include a sensing distance of 2mm designed for a standard target of 12×12×1mm(iron). This sensor features a Current specification of Current consumption: Max. 20mA and a control output with Max. 100mA configurations. It operates on a Wire type and power . Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70℃, storage: -25 to 70℃ and can be stored at temperatures ranging. A response frequency of 150Hz ensures quick and accurate performance. It's Time to get a Quote for your requirement of Long-Distance Proximity Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
