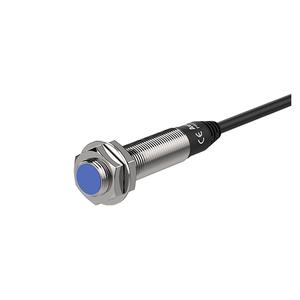

Autonics PRDCML12-8DP Proximity Sensor
The Autonics PRDCML12-8DP Proximity Sensor offers a 8mm sensing distance with PNP Normally Open output and a durable M12 sensing side diameter for precise and reliable operation in automation applications. Manufactured by Autonics, this high-quality Autonics Proximity Sensor is part of the Autonics PRD Series, built for dependable and long-lasting sensing performance in industrial systems. It supports DC 3-wire type 12–24VDC power supply, includes a robust IP67 protection structure, and provides a 400Hz response frequency. The model detects 25×25×1mm (iron) standard targets with maximum 10% hysteresis, ensuring stable accuracy and consistent performance in demanding environments.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRDCML12-8DP |
Autonics PRDCML12-8DP Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M12 |
| Sensing distance | 8mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 25×25×1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Non-shield(non-flush) |
| Cable Standard/material | Standard connector |
| Body length | Long body |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67 |
| Material | Brass(nickel plated) |
| Response frequency | 400Hz |
| Weight | ≈ 24g (≈ 54g) |
Call us for Long-Distance Inductive Sensor PRDCML12-8DP at the best rates. Technical Attributes of PRDCML12-8DP are the key specifications include a sensing distance of 8mm designed for a standard target of 25×25×1mm(iron). This sensor features a Current specification of Current consumption: Max. 10mA and a control output with PNP Normally Open configurations. It operates on a Wire type and power DC 3-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70℃, storage: -30 to 80℃ and can be stored at temperatures ranging. A response frequency of 400Hz ensures quick and accurate performance. Unlock Exclusive Pricing with a Quote for your requirement of Long-Distance Inductive Sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
