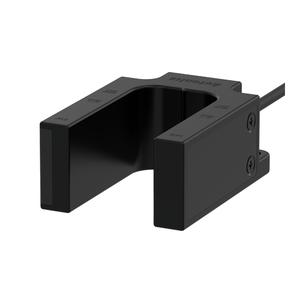

Autonics MU-1A-30 Proximity Sensor
The Autonics MU-1A-30 Proximity Sensor offers Normally Open contact type, output, , Cover/Case: PC (915R), Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics MU Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | MU-1A-30 |
Autonics MU-1A-30 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Standard sensing target | Steel plate - a galvanized steel sheet 1.6t |
| Switching voltage | ≤ 24VDC@(=) |
| Contact type | Normally Open |
| Operation distance_OFF→ON | ± 10 mm |
| Operation distance_ON→OFF | ± 20 mm |
| Operating frequency | ≤ 500 Hz |
| Applied REED SWITCH | Model : ORD324-10-15 (STANDEX MEDER) |
| Insulation resistance | ≥1,000MΩ (at 500VDC megger) |
| Dielectric strength | 500VAC~ 50/60Hz for 1 min. |
| Vibration | 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours |
| Shock | 100m/s² (approx. 10G) in each X, Y, Z direction for 3 times |
| Environment_Ambient temperature | -10 to 65 ℃, storage: -10 to 70 ℃ (no freezing or condensation) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67(IEC standard) |
| Material | Cover/Case: PC (915R) |
| Weight | ≈ 132.5 g (≈ 172.3 g) |
Ask for the Pricing of U-shaped Magnetic Proximity Sensors MU-1A-30 at unbeatable prices. Detailed Specifications of MU-1A-30 features the key specifications include a sensing distance of designed for a standard target of Steel plate - a galvanized steel sheet 1.6t. This sensor features a Current specification of and a control output with configurations. It operates on a Wire type and power . Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -10 to 65 ℃, storage: -10 to 70 ℃ (no freezing or condensation) and can be stored at temperatures ranging. A response frequency of ensures quick and accurate performance. Now's the Time to Secure a Quote for your requirement of U-shaped Magnetic Proximity Sensors. We're committed to offering more favorable pricing and more responsive support than other Traders.
