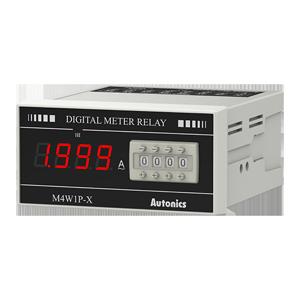

Autonics M4W1P-AA-4 Digital Panel Meter
The Autonics M4W1P-AA-4 Digital Panel Meter offers 3½-digit 7-segment LED display method, 10mm character height, 0 to 19.99 display range, AC current measurement. Manufactured by Autonics under the Autonics Digital Panel Meter category, this model belongs to the Autonics M4W1P Series.
| Brand | Autonics |
| Product Type | Digital Panel Meter |
| Model Number | M4W1P-AA-4 |
Autonics M4W1P-AA-4 Digital Panel Meter – Technical Specifications
| Specification | Value |
|---|---|
| Display method | 3½-digit 7-segment LED |
| Character height | 10mm |
| Max. display Range | 0 to 19.99 |
| Measurement | AC current |
| Input specification | 20A/5A(CT) |
| AC Measurement | Average value(AVG) |
| Sampling cycle | 300ms |
| Max. allowable input | 150% for each input specification (at 400VAC:120%) |
| Power supply(Option) | 110/220VAC~ 50/60Hz |
| Output | Relay(HI) |
| Display accuracy_AC power | F.S. ±0.5% rdg ±1-digit |
| Environment_Ambient temperature | -10 to 50℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 253g |
Talk to Our Engineer for Autonics Digital Ammeters M4W1P-AA-4 with exclusive offers. Core System Specifications of M4W1P-AA-4 are an 3½-digit 7-segment LED with 10mm character height, these displays support a maximum range of 0 to 19.99. Designed for AC current measurement, they handle 20A/5A(CT) inputs. The system supports AVG and RMS measurement methods and operates on 110/220VAC~ 50/60Hz Power supply(Option). Outputs include Relay(HI) and -10 to 50℃, storage: -25 to 65℃Environment_Ambient temperature. The Environment_Ambient humidity is 35 to 85% RH, storage: 35 to 85% RH. The Approx. 253g Weight ensures precise 300ms sampling. Equipped with a 150% for each input specification (at 400VAC:120%), Max. allowable input for industrial automation applications. Get a quote today for Autonics Display Units with superior accuracy and performance. Don't Miss Out on a Quote for your requirement of Digital Ammeters. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
