Many procurement teams check M4W-AAR-XX against Autonics Proximity Sensor, Autonics M4Y Da Xx and Selec Digital Panel Meter before signing purchase orders, verifying quality, compliance, and after-sales support availability.

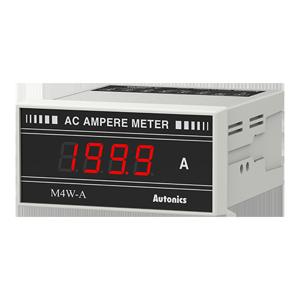

Autonics M4W-AAR-XX Digital Panel Meter
The Autonics M4W-AAR-XX Digital Panel Meter offers 3ΓΒ½-digit 7-segment LED display method, 14mm character height, 0 to 1999 display range, AC current measurement. Manufactured by Autonics under the Autonics Digital Panel Meter category, this model belongs to the Autonics M4W Series.
| Brand | Autonics |
| Product Type | Digital Panel Meter |
| Model Number | M4W-AAR-XX |
Autonics M4W-AAR-XX Digital Panel Meter β Technical Specifications
| Specification | Value |
|---|---|
| Display method | 3ΓΒ½-digit 7-segment LED |
| Character height | 14mm |
| Max. display Range | 0 to 1999 |
| Measurement | AC current |
| Input specification | Option |
| AC Measurement | Root mean square value(RMS) |
| Sampling cycle | 300ms |
| Max. allowable input | 150% for each input specification (at 400VAC:120%) |
| Power supply(Option) | 110/220VAC~ 50/60Hz(100-240VAC~ 50/60Hz) |
| Output | Indicator |
| Display accuracy_AC power | F.S. ΓΒ±0.5% rdg ΓΒ±1-digit |
| Environment_Ambient temperature | -10 to 50Γ’βΖ, storage: -25 to 65Γ’βΖ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 168g |
Ask for the Pricing of Autonics Digital Ammeters M4W-AAR-XX at unbeatable prices. Detailed Specifications of M4W-AAR-XX feature an 3ΓΒ½-digit 7-segment LED with 14mm character height, these displays support a maximum range of 0 to 1999. Designed for AC current measurement, they handle Option inputs. The system supports AVG and RMS measurement methods and operates on 110/220VAC~ 50/60Hz(100-240VAC~ 50/60Hz) Power supply(Option). Outputs include Indicator and -10 to 50Γ’βΖ, storage: -25 to 65Γ’βΖEnvironment_Ambient temperature. The Environment_Ambient humidity is 35 to 85% RH, storage: 35 to 85% RH. The Approx. 168g Weight ensures precise 300ms sampling. Equipped with a 150% for each input specification (at 400VAC:120%), Max. allowable input for industrial automation applications. Get a quote today for Autonics Display Units with superior accuracy and performance. Now's the Time to Secure a Quote for your requirement of Digital Ammeters. We're committed to offering more favorable pricing and more responsive support than other Traders.
