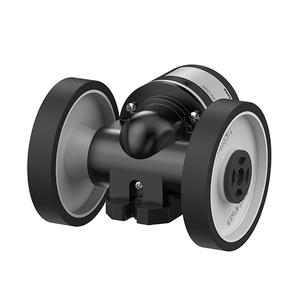

Autonics ENC-1-3-T-24-C Rotary Encoder
The Autonics ENC-1-3-T-24-C Rotary Encoder offers Totem pole control output, Axial cable connector type, 180kHz allowable frequency, 12-24VDC power supply. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the ENC Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | ENC-1-3-T-24-C |
Autonics ENC-1-3-T-24-C Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Max. response frequency | 180kHz |
| Max. allowable revolution | 5000rpm |
| Output phase | A, B |
| Control output | Totem pole |
| Power supply | 12-24VDC |
| Connection type | Axial cable connector type |
| Wheel diameter | 250mm |
| Gear ratio | 4:1 |
| Number of pulses | 1 |
| Min. measurement unit | 1m |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Weight | Approx. 494g |
The ENC-1-3-T-24-C by Autonics is built to deliver consistent performance in demanding factory environments. With a maximum response frequency of 180kHz and a maximum allowable revolution speed of 5000rpm, it ensures smooth data capture even during high-speed linear movement. The encoder outputs dual phase signals (A, B) through a Totem pole control output, enabling seamless integration with a wide range of PLCs and controllers. Designed to work on a stable 12-24VDC power supply with ripple tolerance, it offers dependable voltage handling critical for industrial applications. The Axial cable connector simplifies wiring in panel layouts, and the encoder’s IP50 protection structure safeguards internal components from dust, contributing to extended operational life.
What sets this model apart is its ability to deliver a 1 pulse per meter reading through a 250mm wheel paired with a 4:1 gear ratio. This setup is particularly effective in systems that require confirmation of basic travel intervals rather than granular positioning. The ENC-1-3-T-24-C operates reliably in temperature ranges from -10°C to 70°C and can handle ambient humidity levels of up to 85% RH. Weighing approximately 494g, it is compact yet mechanically robust, making it suitable for OEMs, maintenance teams, and automation retrofit projects alike.
In real-world applications, the Autonics ENC-1-3-T-24-C Wheel Type Incremental Rotary Encoder is commonly used in carton length verification, packaging material feed monitoring, pallet travel tracking, and assembly conveyor positioning. For Indian engineers working on medium-to-long distance travel measurements—especially in packaging lines, textile looms, or print roll systems—this encoder delivers an excellent balance of price and performance. Its long-distance pulse accuracy makes it a top choice for tracking consistent intervals, like every meter of product movement or material handling. Whether you're designing new systems or upgrading legacy equipment, this encoder offers proven durability and ease of installation. For more detailed product documentation, visit the official Autonics website.
