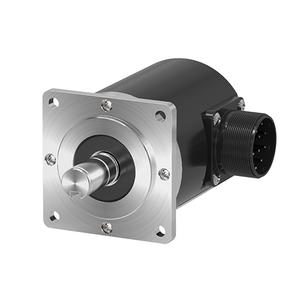

Autonics E68S15-500-6-L-5 Rotary Encoder
The Autonics E68S15-500-6-L-5 Rotary Encoder offers 500P/R resolution, Γ15mm shaft diameter, Radial connector type, Line Driver output, 180kHz response frequency. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the E68S Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E68S15-500-6-L-5 |
Autonics E68S15-500-6-L-5 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Γ15mm |
| Max. response frequency | 180kHz |
| Max. allowable revolution | 6500rpm |
| Starting torque | Max. 1.5kgf.cm(max. 0.147N.m) |
| Resolution | 500P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 5VDC |
| Connection type | Radial connector type |
| Protection structure | IP65 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Weight | Approx. 550g |
IndMALL Automation Dealing offers 68 mm Incremental Rotary Encoders E68S15-500-6-L-5 at unbeatable prices. The Main Technical Parameters of E68S15-500-6-L-5 are shaft outer diameter of Γ15mm, ensuring precise compatibility for industrial applications. It supports a high response frequency of 180kHz and a maximum allowable revolution speed of 6500rpm, making it suitable for high-performance operations. With a resolution of 500P/R, it delivers accurate output signals. The encoder uses a Line Driver control output and operates seamlessly with a power supply 5VDC. It features an Radial connector type for easy and reliable connections. Designed for durability, it operates in ambient temperatures from -10 to 70β, storage: -25 to 85β. The humidity range supported is 35 to 85% RH, storage: 35 to 90% RH during storage. Take the First Step with a Quote for your requirement of 68 mm Incremental Rotary Encoders. Choose us for unparalleled pricing and support over other Dealers & Distributors.
