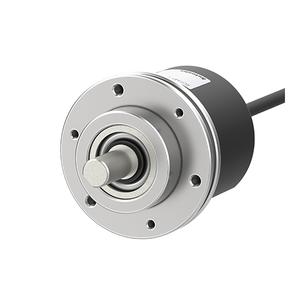

Autonics E58SC10-5000-6-L-24 Rotary Encoder
The Autonics E58SC10-5000-6-L-24 Rotary Encoder offers 5000P/R resolution, Ø10mm shaft diameter, Axial cable type, Line Driver output, 300kHz response frequency. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the E58SC Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E58SC10-5000-6-L-24 |
Autonics E58SC10-5000-6-L-24 Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Ø10mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 40gf.cm(max. 0.00392N.m) |
| Resolution | 5000P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 12-24VDC |
| Connection type | Axial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø10mm coupling, Bracket |
| Weight | Approx. 420g(Approx. 310g) |
Call us for 58mm Incremental Rotary Encoder E58SC10-5000-6-L-24 at the best rates. Technical Attributes of E58SC10-5000-6-L-24 are shaft outer diameter of Ø10mm, ensuring precise compatibility for industrial applications. It supports a high response frequency of 300kHz and a maximum allowable revolution speed of 5000rpm, making it suitable for high-performance operations. With a resolution of 5000P/R, it delivers accurate output signals. The encoder uses a Line Driver control output and operates seamlessly with a power supply 12-24VDC. It features an Axial cable type for easy and reliable connections. Designed for durability, it operates in ambient temperatures from -10 to 70℃, storage: -25 to 85℃. The humidity range supported is 35 to 85% RH, storage: 35 to 90% RH during storage. Unlock Exclusive Pricing with a Quote for your requirement of 58mm Incremental Rotary Encoder. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
